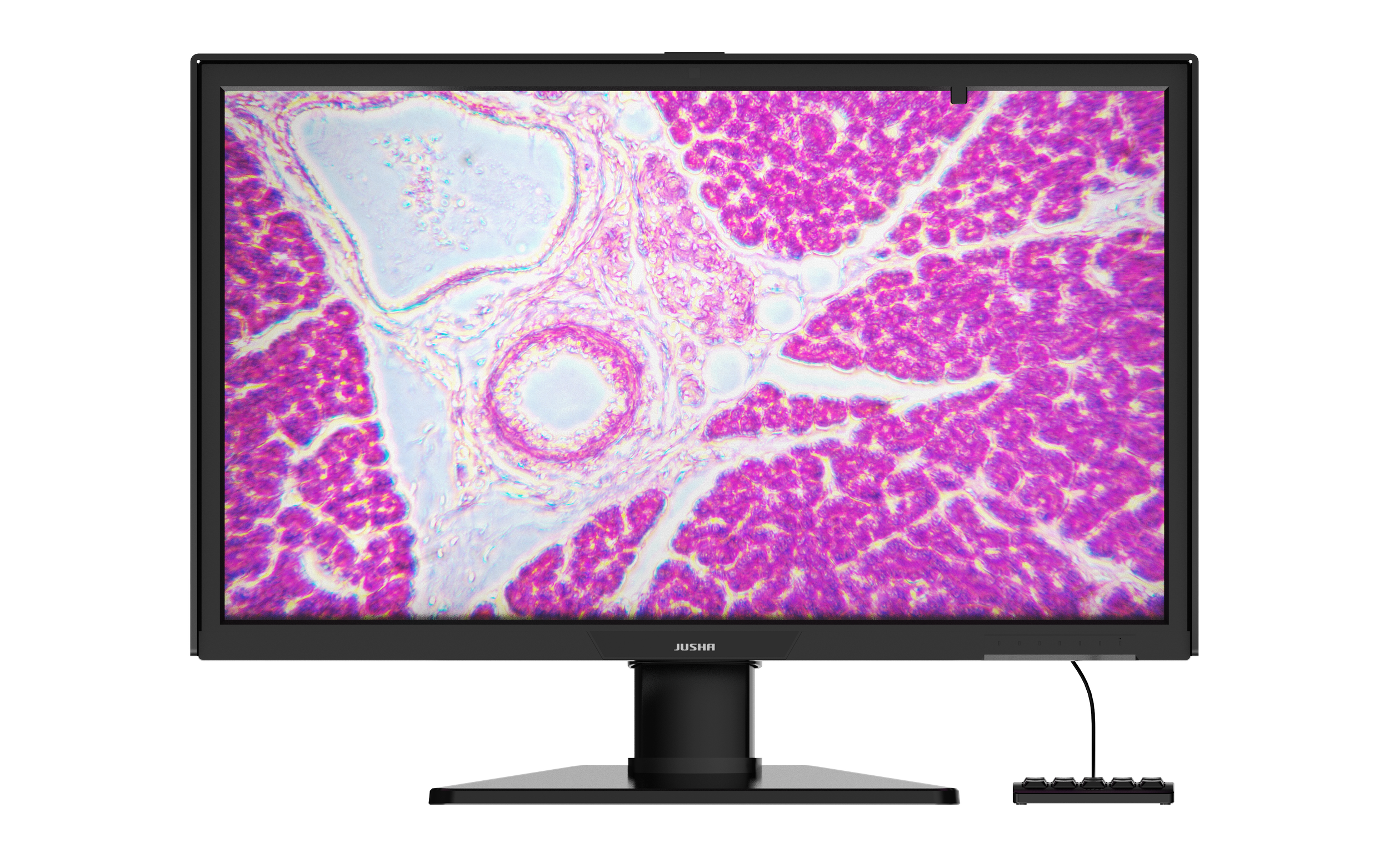

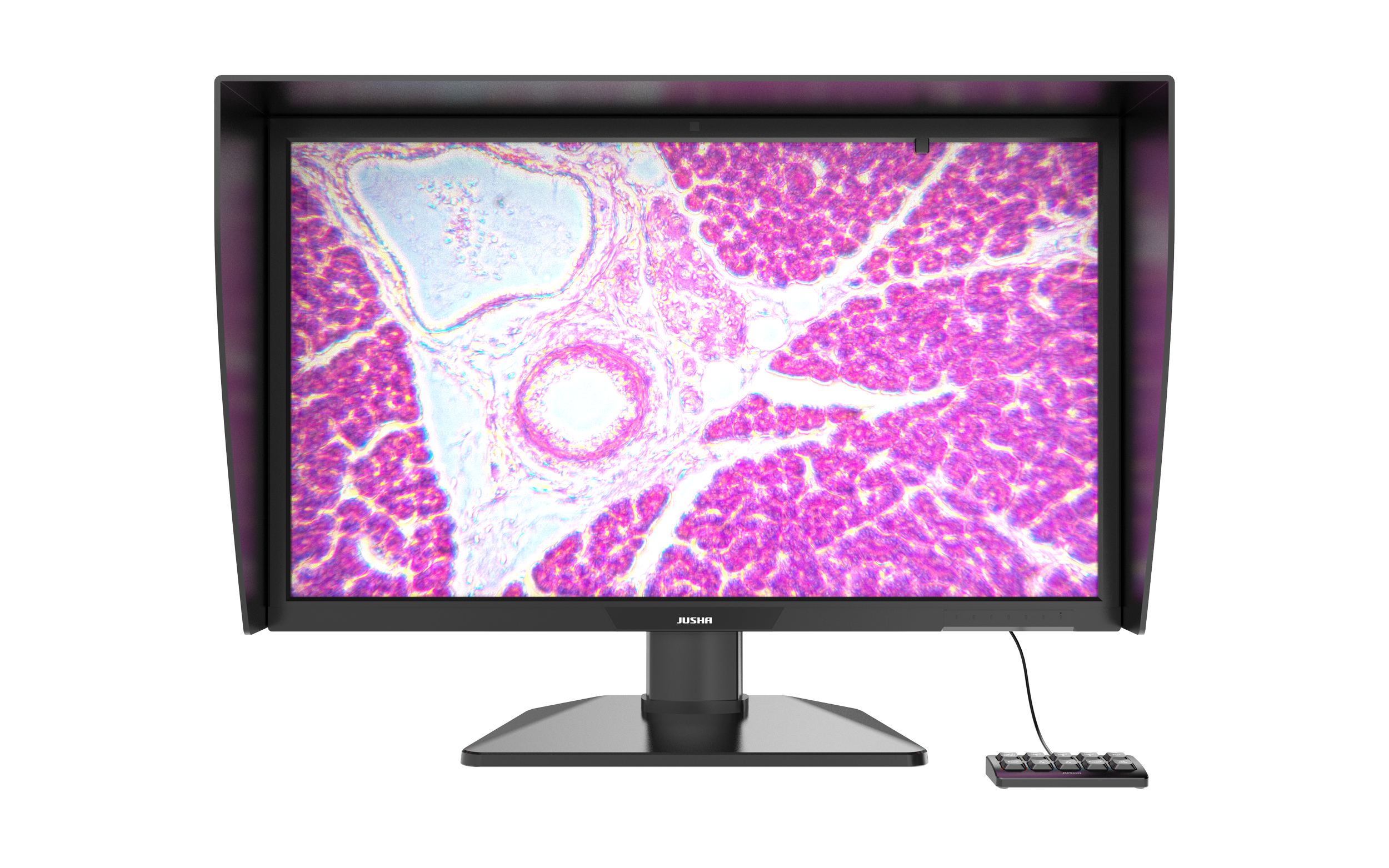

8MP (4K) Diagnostic Monitor Specialized for Digital Pathology
This monitor features 4K, 8MP resolution, a 120Hz refresh rate, and 10-bit color depth. The built-in sensor, together with Jusha’s Qualitas QA software, ensures long-term accurate color reproduction. Additionally, an innovative, accessible keyboard allows users to quickly adjust backlight, enhance images, and access various functions. Altogether, this monitor delivers an enhanced viewing experience for pathologists in the era of digital pathology.
Co-developed with NPIC
In collaboration with National Pathology Imaging Co-operative (NPIC) at The Leeds Teaching Hospitals in the UK, a monitor specially designed for digital pathology was developed—from initial concept to final product.
Accurate Color
With a built-in sensor and precise factory calibration, accurate color reproduction is guaranteed. Additionally, our fully self-developed QA software makes monitor checking and recalibration easier than ever.
High Refresh Rate
The 120Hz refresh rate minimizes blur and lag during fast image movement.
Wide Color Gamut
Wide color gamut coverage enables precise color reproduction. Sufficient redundancy also allows for future recalibration.

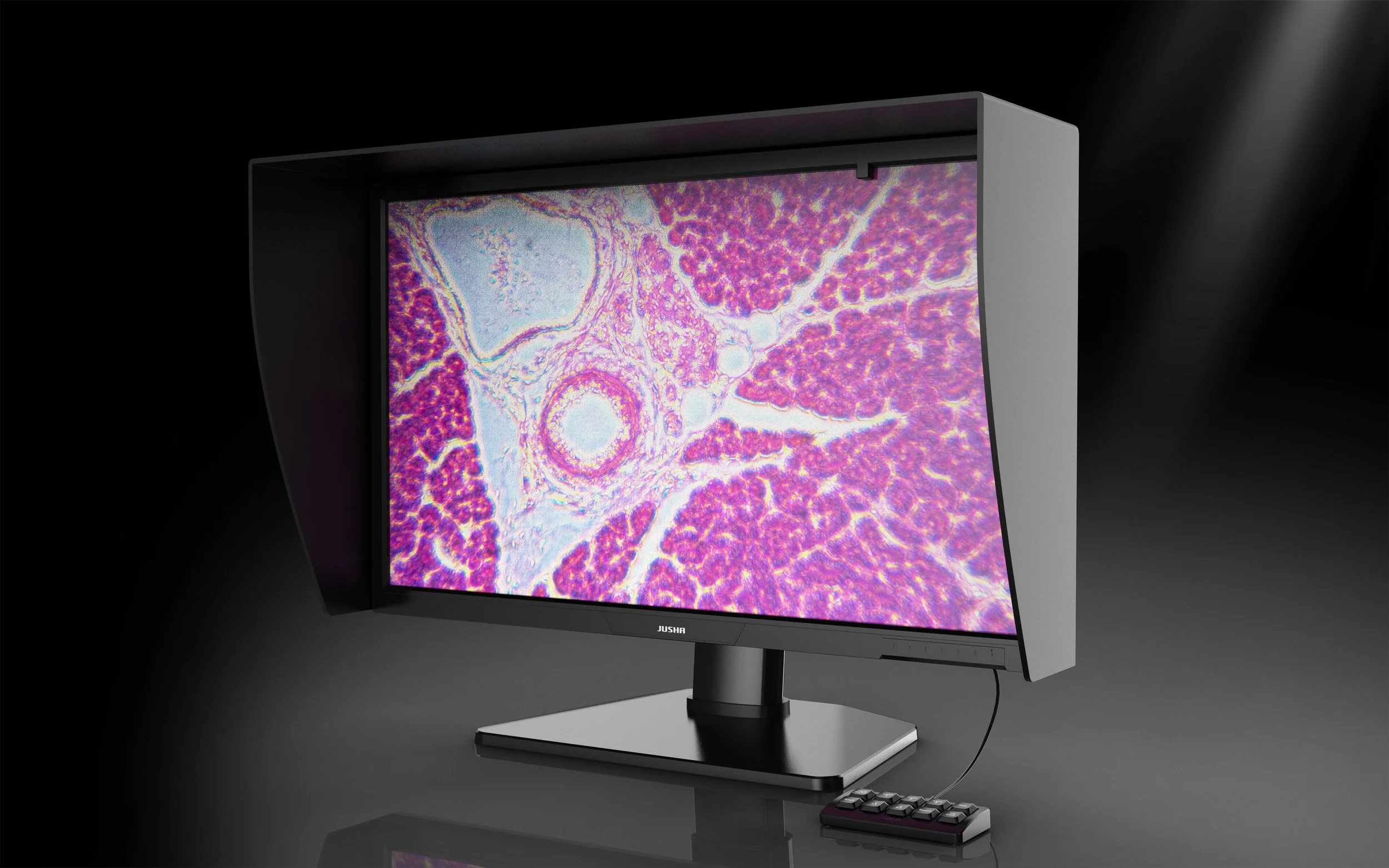

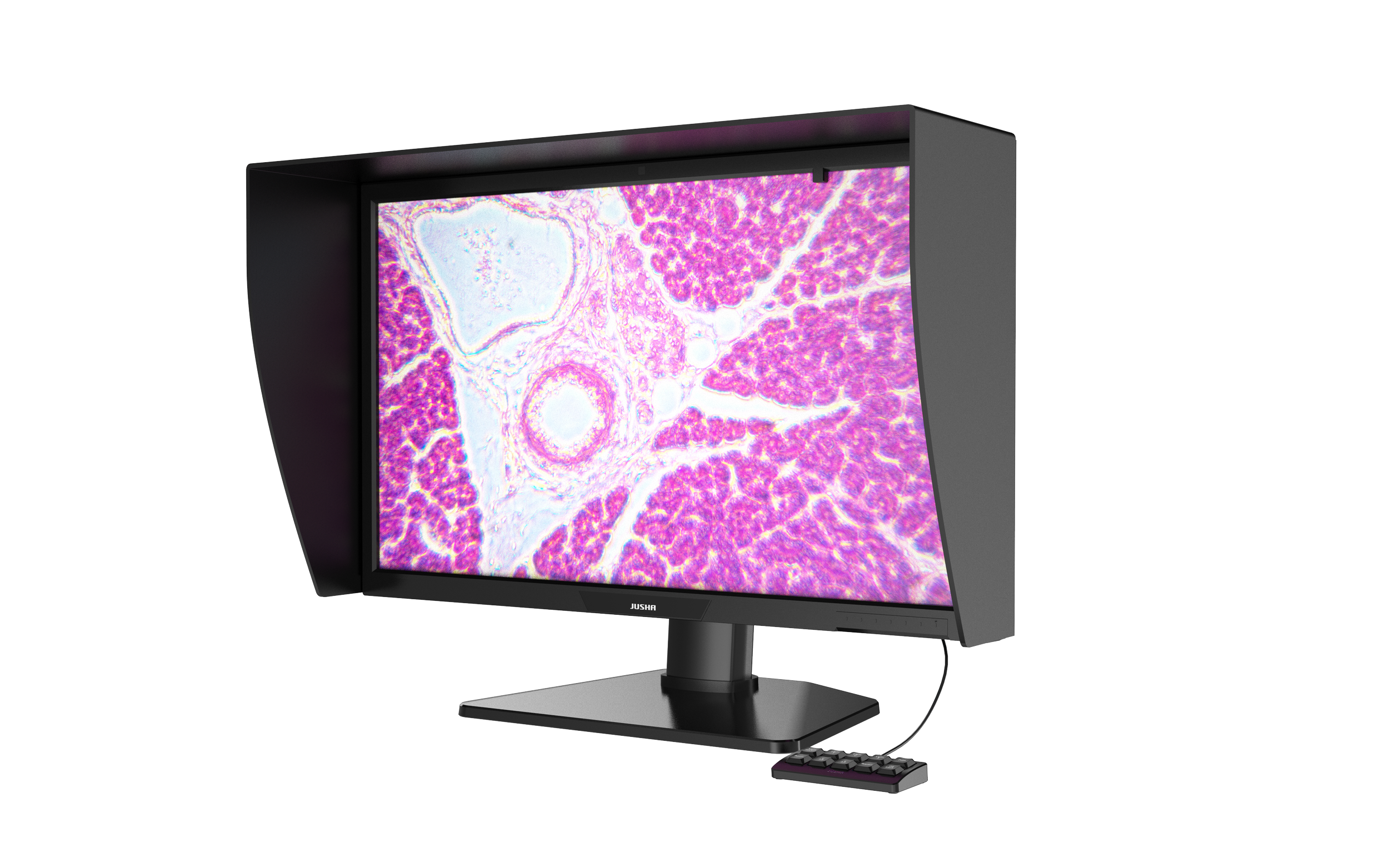

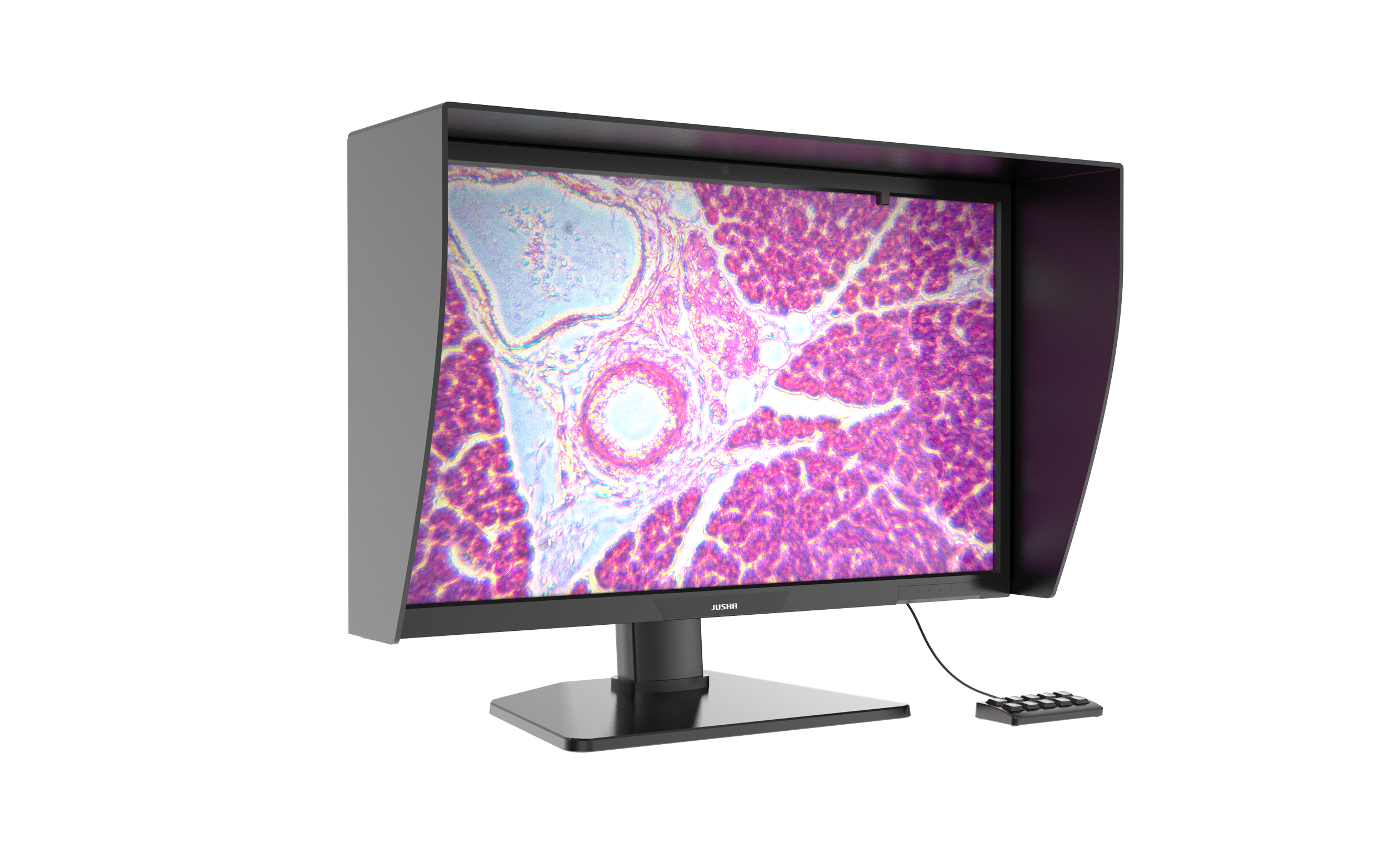

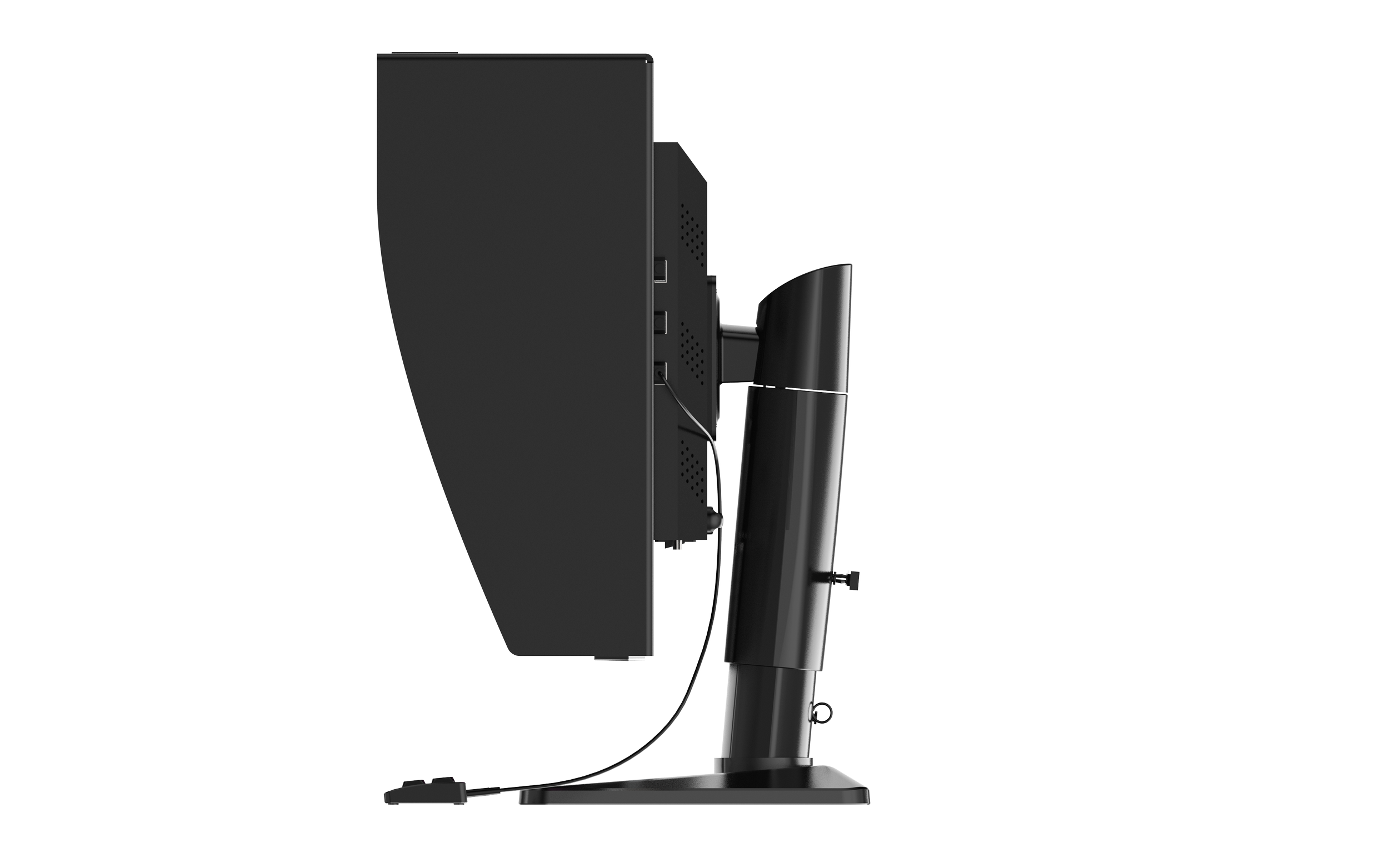

Light Hood
The hood reduces the impact of ambient light, improves contrast and clarity, ensures accurate image display, and enhances diagnostic efficiency and accuracy.
Shortcut Keyboard
Designed with pathologists’ workflow in mind, the compact keyboard provides quick access to frequently used shortcuts. With a simple press, users can adjust backlight and Gamma presets, boost images, lock the system, or initiate QA.
Embedded QA Sensor
Embedded QA features combined with the built-in sensor simplify performance checks and ensure long-term image quality.
Ambient Light Sensor
The integrated ambient light sensor can issue warnings or automatically adjust monitor brightness according to surrounding light levels.
Human Detection
Sensors detect the presence of users in front of the monitor and automatically turn it off when no one is detected, saving energy and prolonging the monitor’s lifespan.
Qualitas QA Software
With 100% self-developed software and hardware, users can check and calibrate the monitor easily with a few clicks, ensuring long-term image quality thanks to our strong vertical integration. The cloud management platform takes everything one step further, assisting large groups to manage all our devices more efficiently.
Automatic Scheduled QA
Automatic QA scheduling improves diagnostic reliability, ensures compliance, saves staff time, and lowers risk of undetected image degradation.
Point-of-Use QA (PQA)
The PQA function quickly assesses the monitor’s hardware status, alongside visual checks, ensuring optimal working conditions for accurate and responsible diagnoses.

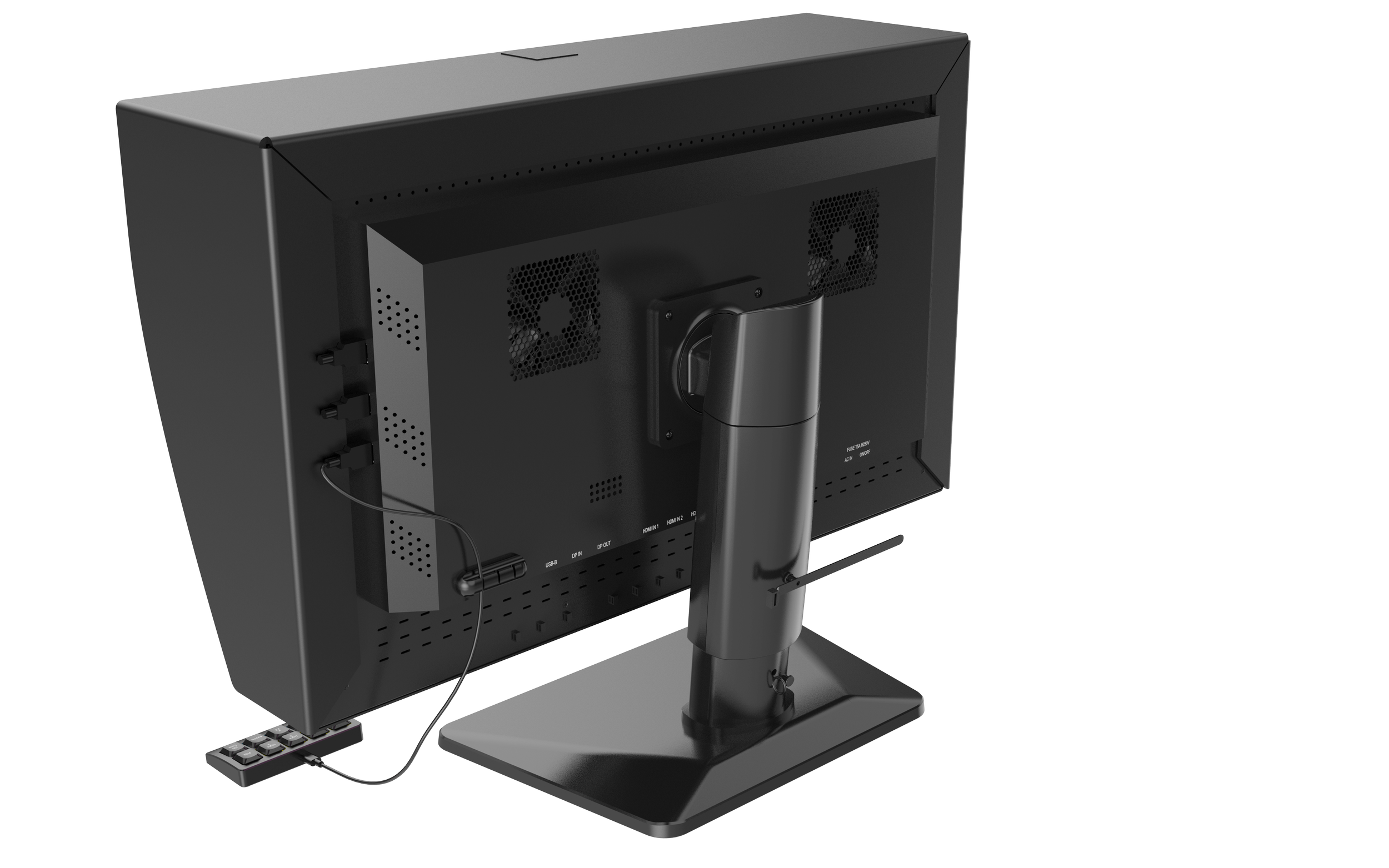

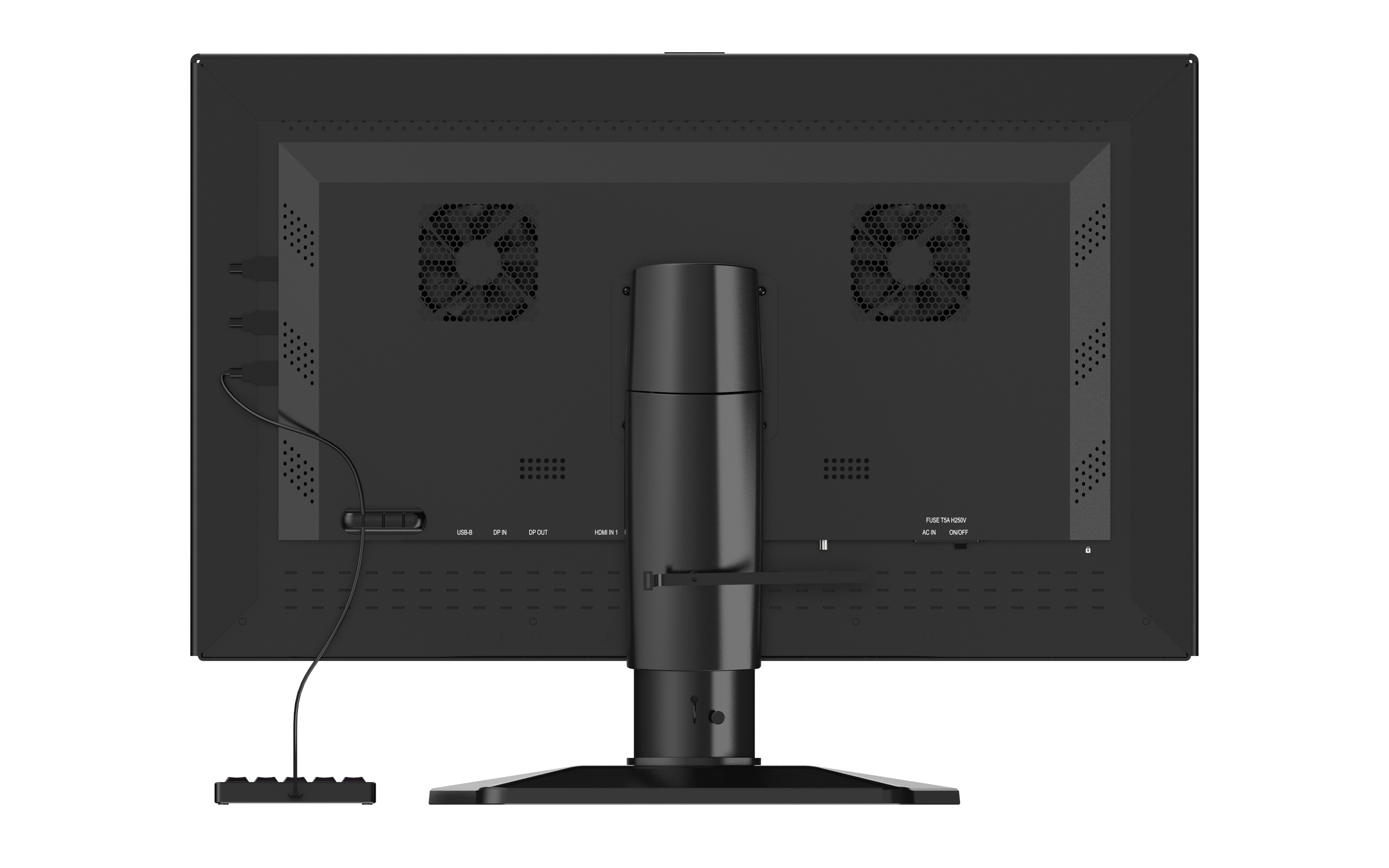

Multiple I/O Ports
3 HDMI ports and 1 Display Port all support 4K, 120Hz, 10bit input.

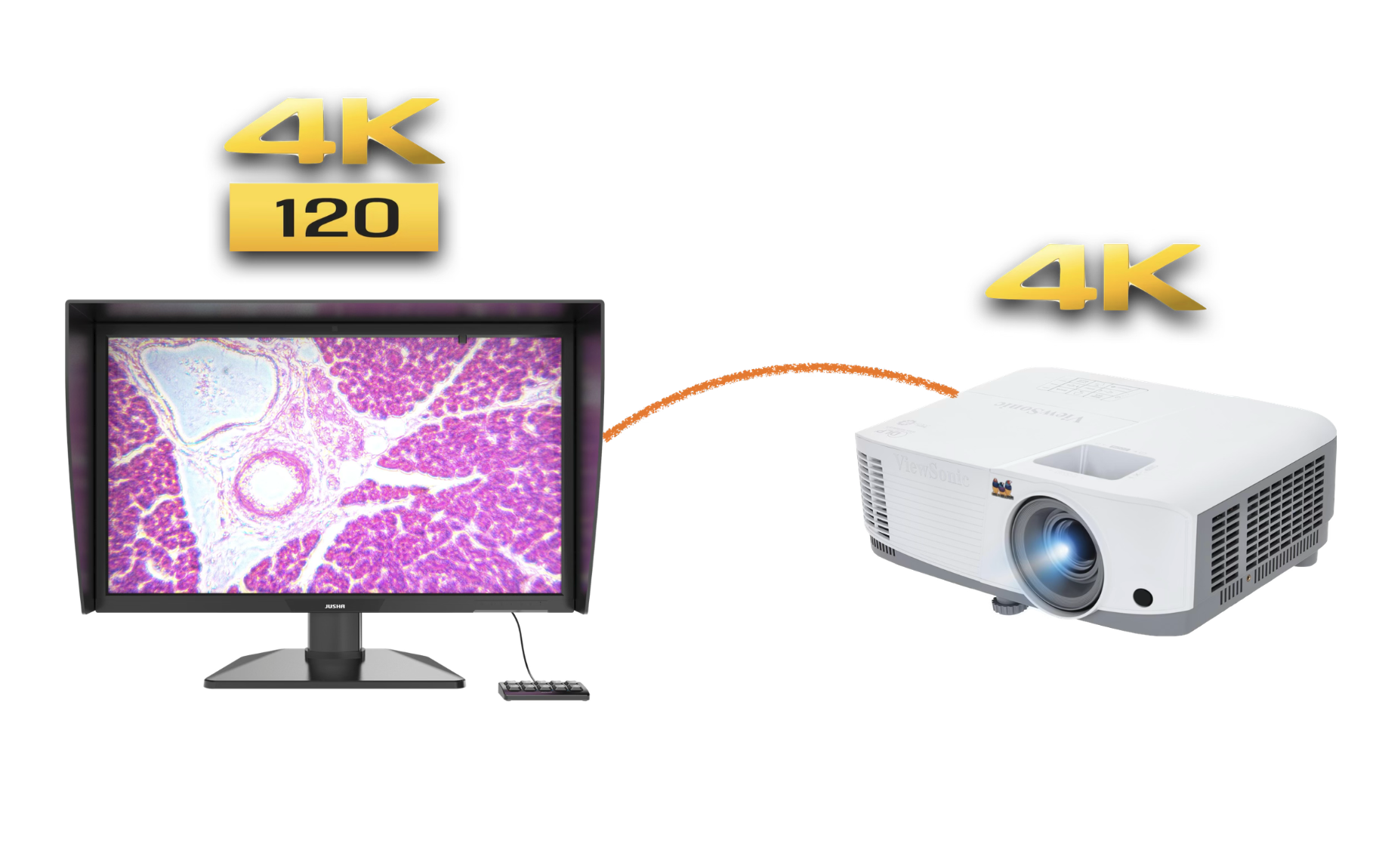

1 DP output port can be used for mirroring, making it easier to connect to external devices such as a projector or TV.
1 USB-C port can charge the laptop with up to 65W power, and transmit video signal at the same time, making the device an ideal laptop companion with one cable connection.
