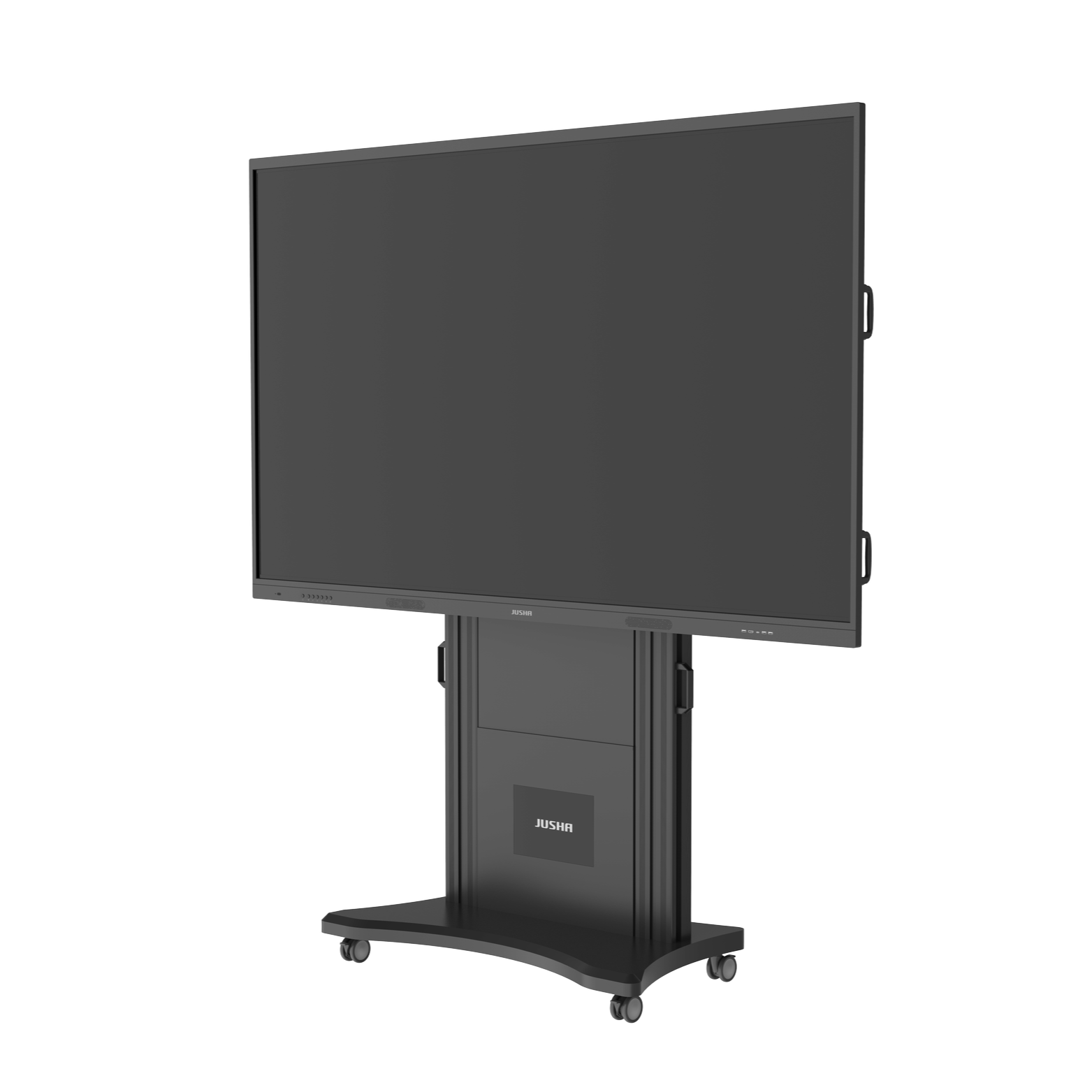

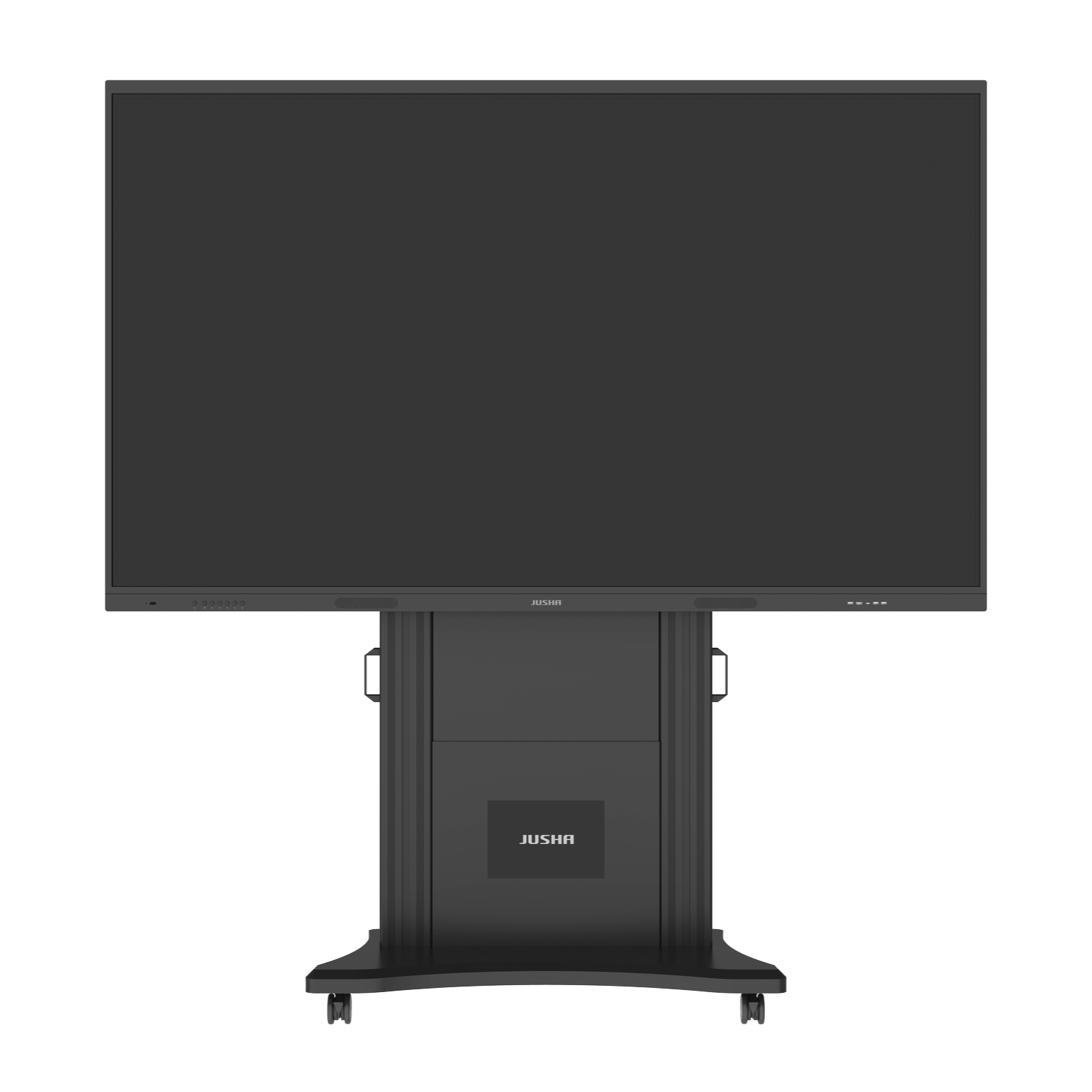

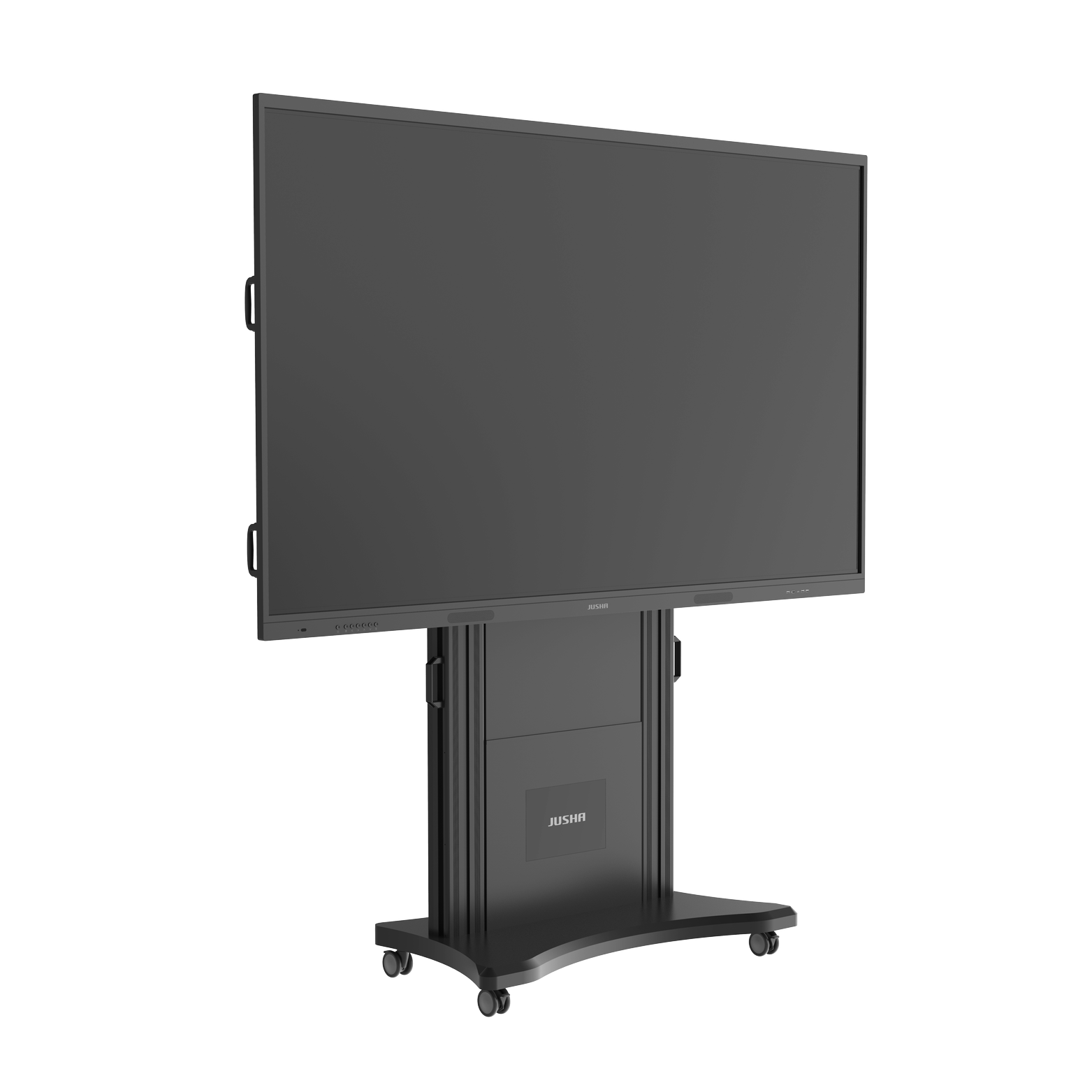

S9820A - 98” 8MP MDT Monitor
Enhanced usability, efficiency, and reliability for MDT Meeting
You can find more videos on our official Youtube company page

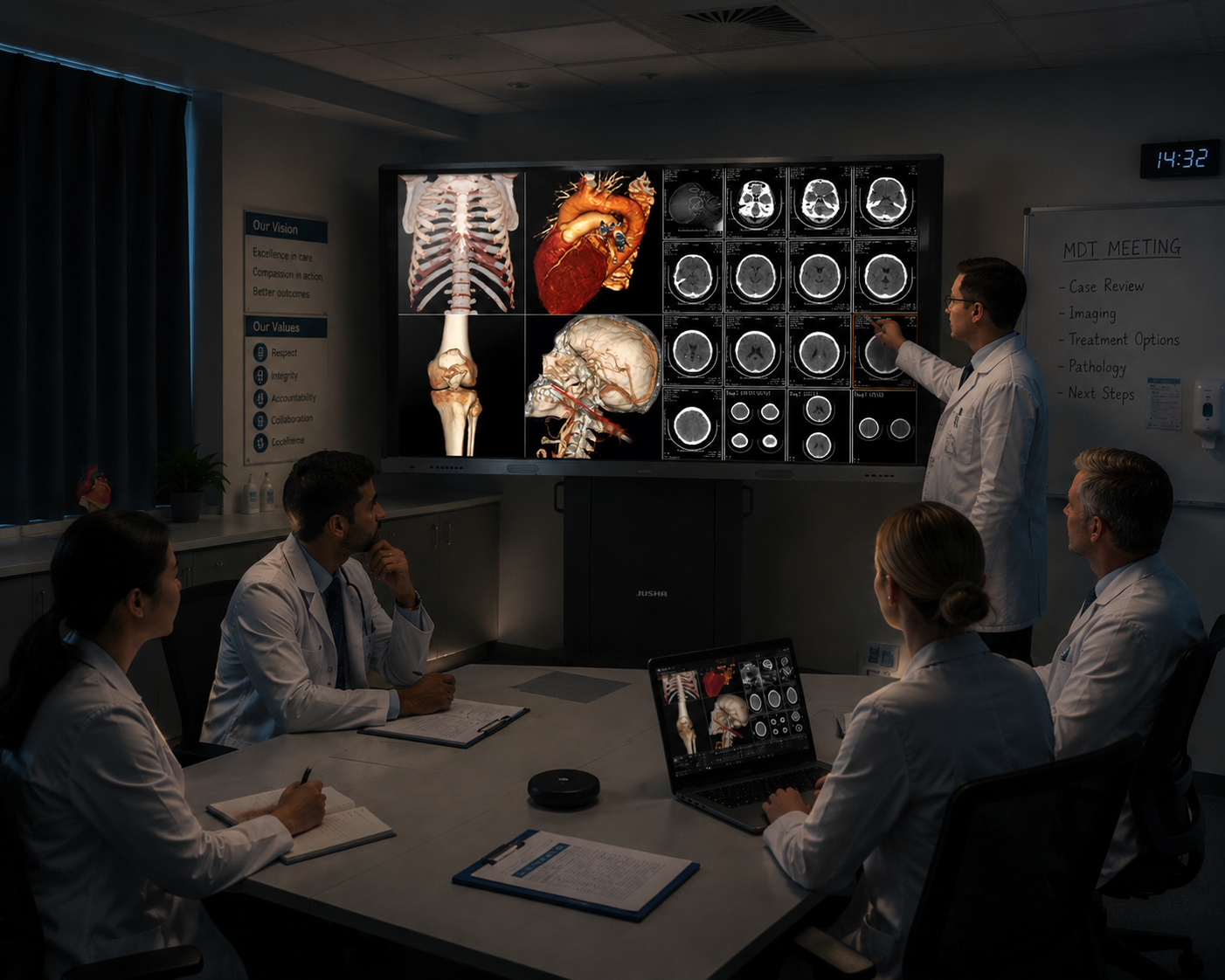

This 98” MDT Monitor is purpose-built to enhance the usability, efficiency, and reliability of multidisciplinary team (MDT) diagnosis. Engineered for clinical collaboration, it combines advanced medical display technologies with intelligent workflow features to support confident decision-making. Key features include DICOM calibration for consistent image accuracy, Ins-Guard backlight stabilization for uniform brightness, and a built-in QA program with integrated sensor to ensure long-term display quality. Additional productivity features such as multi-window mode, an optional OPS integrated PC, ambient light sensing, multi-point touch, anti-glare protective glass, USB-C connectivity with power delivery, and a height-adjustable electric stand provide a flexible, ergonomic, and streamlined diagnostic experience.

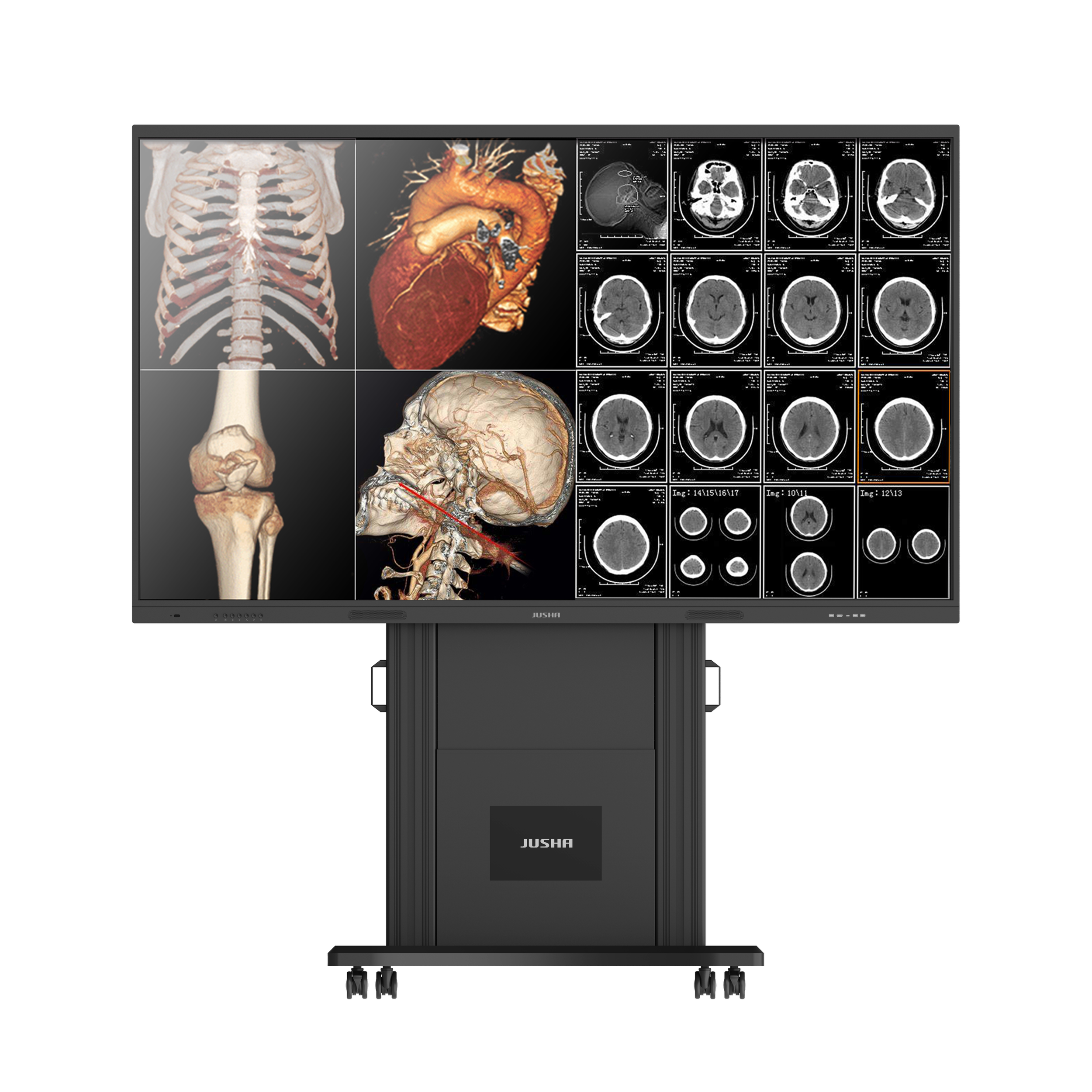

Superior Image Quality
Powered by industry-leading display technology, an 8MP resolution, precise DICOM calibration, and a 16-bit 3D LUT, this monitor delivers exceptional image quality for MDT meetings.
Jusha Qualitas QA Compatible
With 100% self-developed software and hardware, users can check and calibrate the monitor easily with a few clicks, ensuring long-term image quality thanks to our strong vertical integration. The cloud management platform takes everything one step further, assisting large groups to manage all our devices more efficiently.

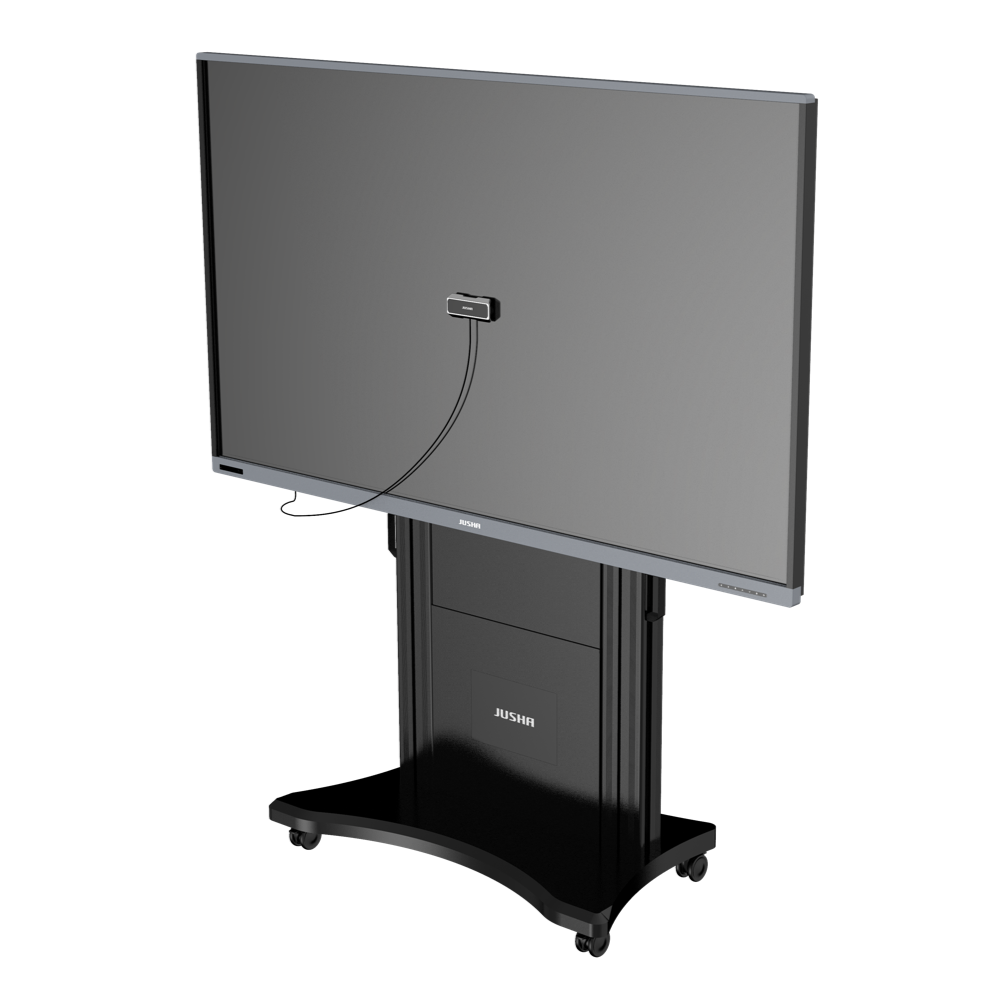

Embedded QA and Sensor
With the QA program built directly into the monitor, and integrated external sensor, users can perform quality assurance tasks without a connected computer.

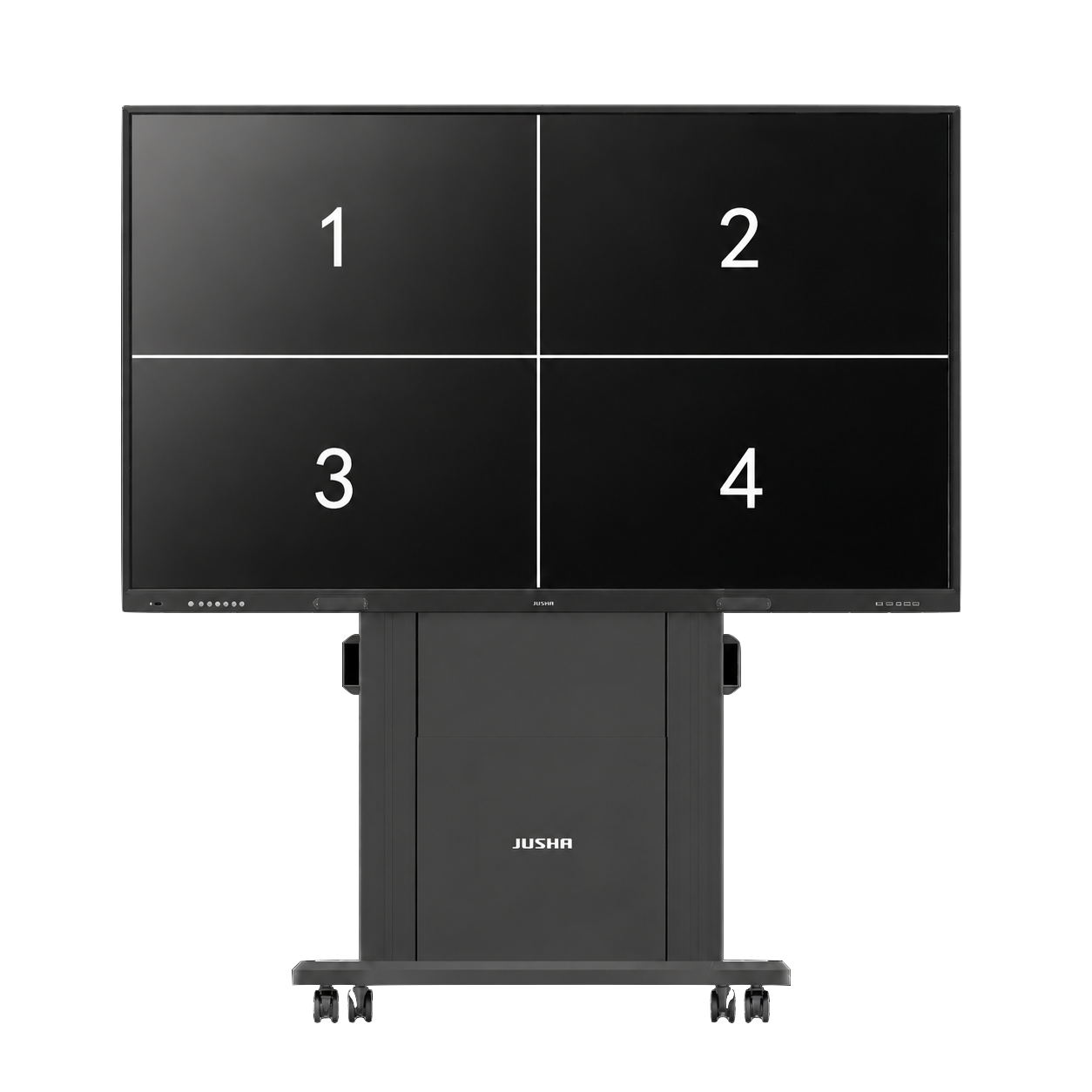

Multi-Window Mode
Supporting multiple input sources, the monitor can display up to four video inputs simultaneously on a single screen. This greatly improves layout flexibility and workflow efficiency without requiring external video processors.
Dual OPS Functionality

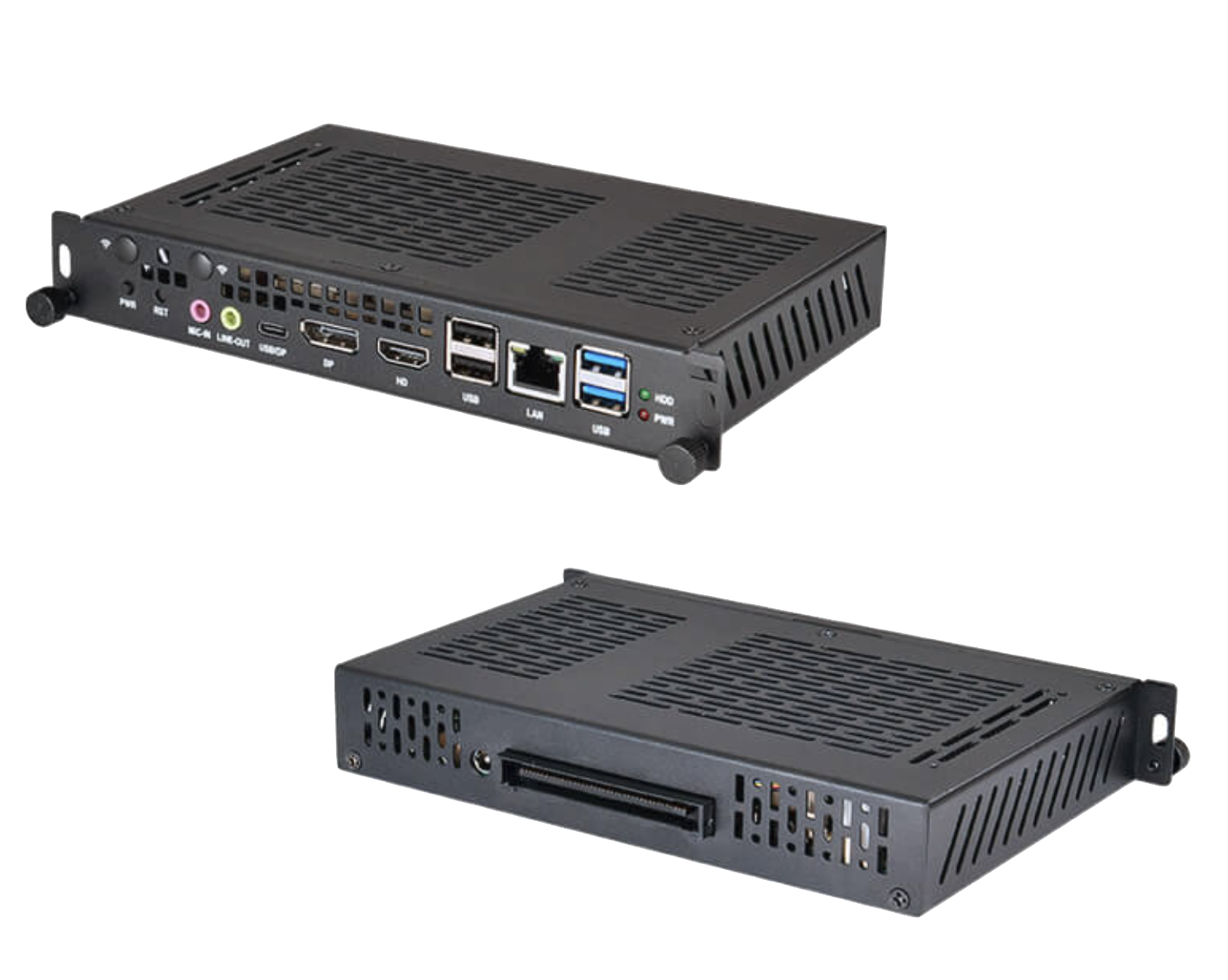

The display features two standard OPS slots, allowing two OPS-compliant, swappable computing modules to be installed simultaneously. Users can seamlessly switch between the two systems, including video, audio, touch, and USB peripherals, providing a convenient dual-system all-in-one solution.
Multi-Touch Functionality

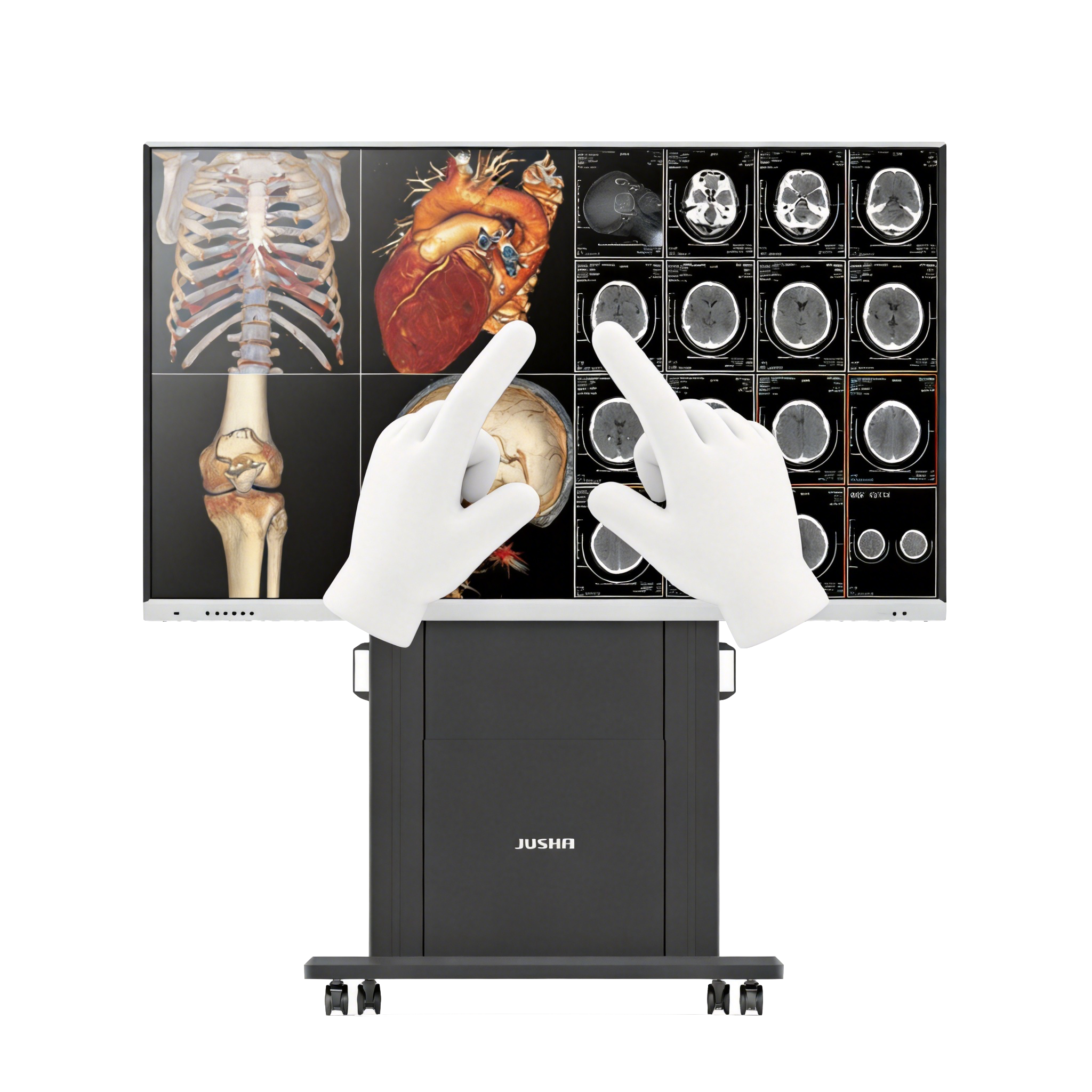

The monitor features a 20-point capacitive touchscreen using a standard USB interface. By connecting a touch-enabled computer or other compatible device via USB, users can interact directly with the display using their fingers or a stylus. Support for up to 20 simultaneous touch points enables intuitive and efficient collaboration.

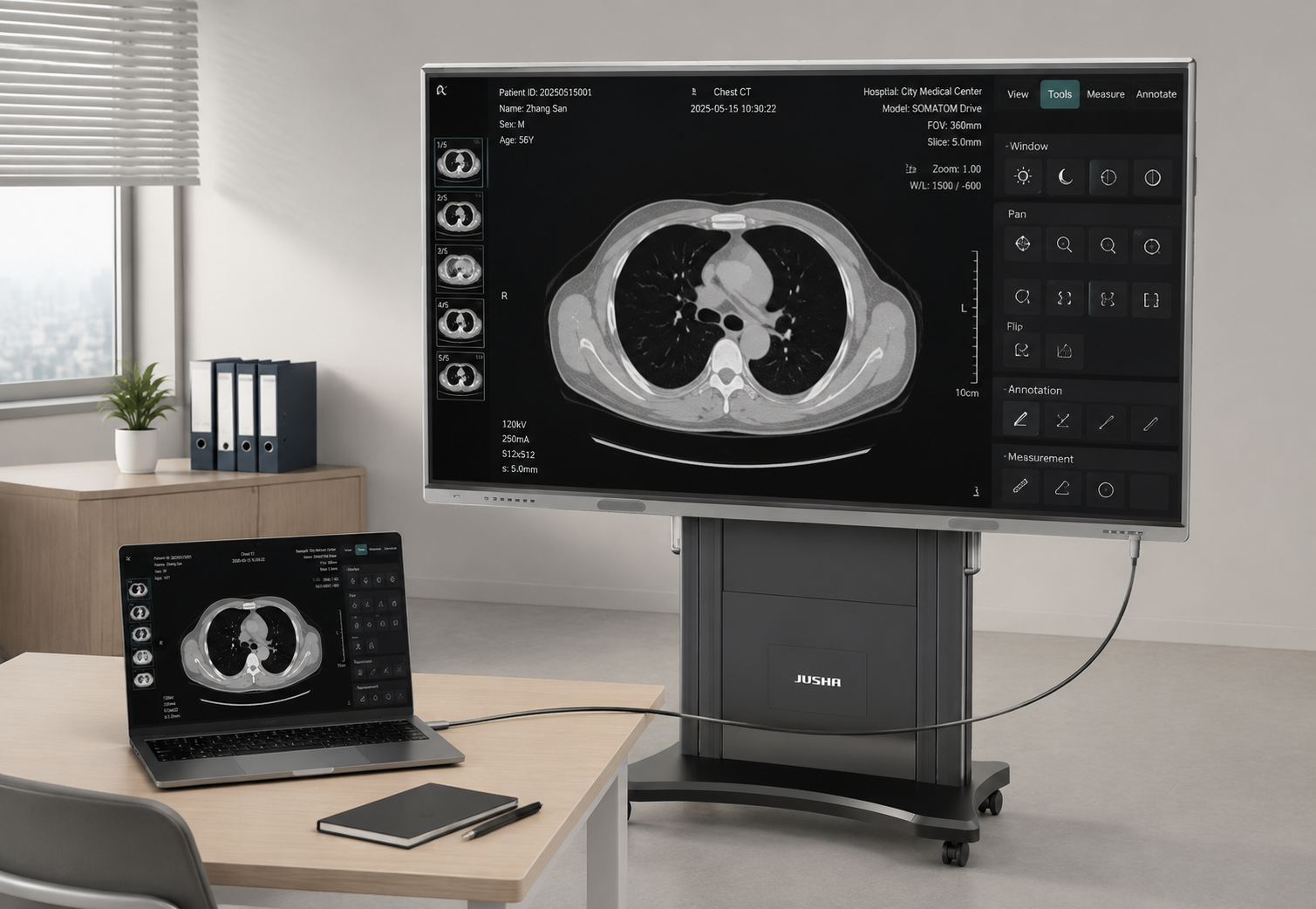

USB-C Connectivity
A single USB-C cable supports video transmission, USB data, and up to 65 W Power Delivery, making laptop connectivity simple and convenient.

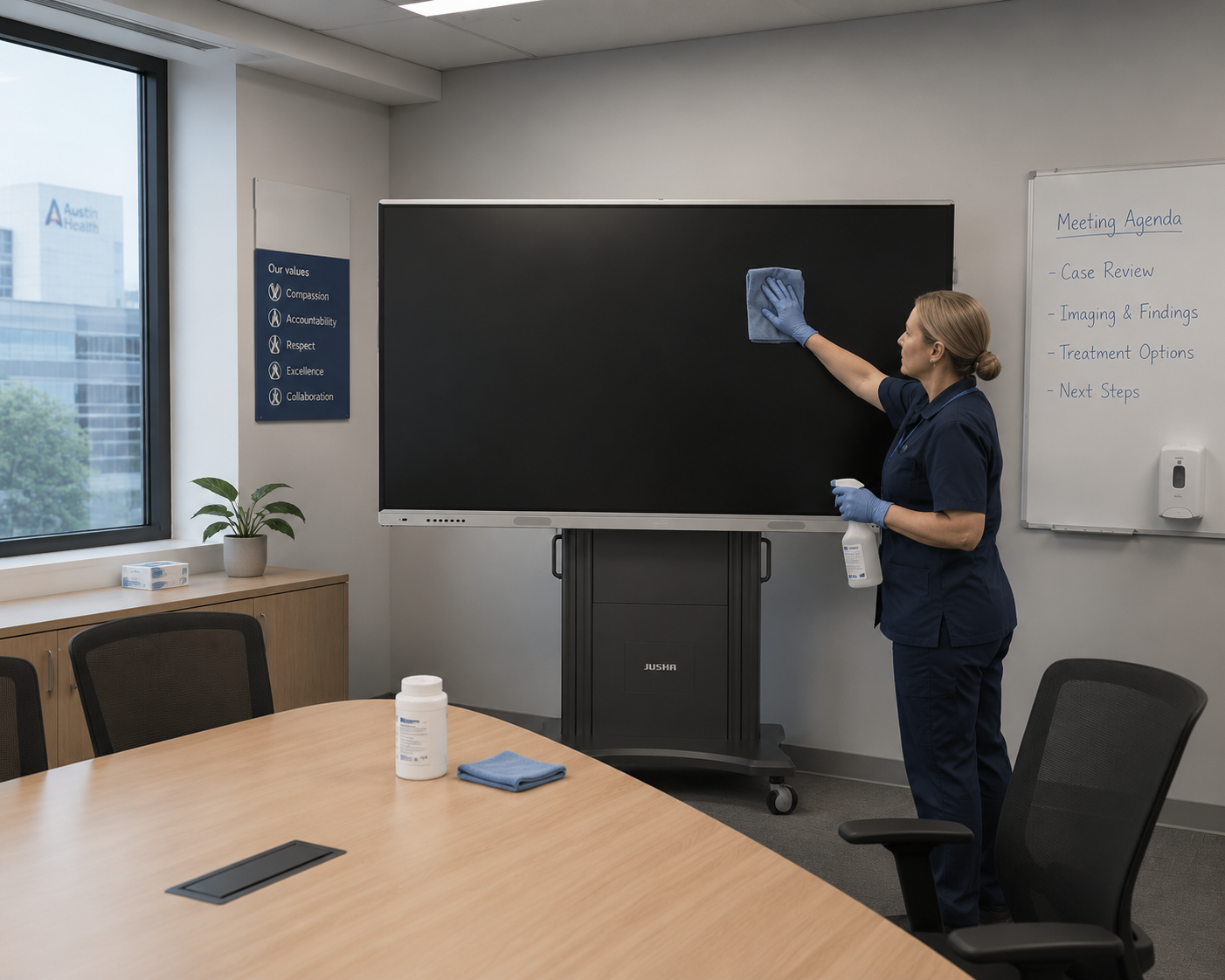

Protective Glass with AR Coating
The display is protected by durable glass with an anti-glare coating that minimizes glare while protecting the screen from scratches and accidental impacts.
Ins-Guard Backlight Stabilization
Our innovative Ins-Guard backlight stabilization technology quickly achieves stable brightness after power-on and maintains consistent luminance throughout the monitor's service life.
An integrated ambient light sensor automatically adjusts screen brightness and compensates the DICOM calibration curve according to the surrounding lighting conditions, ensuring optimal image quality in different environments.
Ambient Light Sensing
Color and Grayscale Auto-Calibration (CGA)
The monitor intelligently detects color and grayscale regions within the displayed image and automatically applies the appropriate calibration curve to each area, optimizing both color accuracy and grayscale performance.
Integrated Electric Stand Control

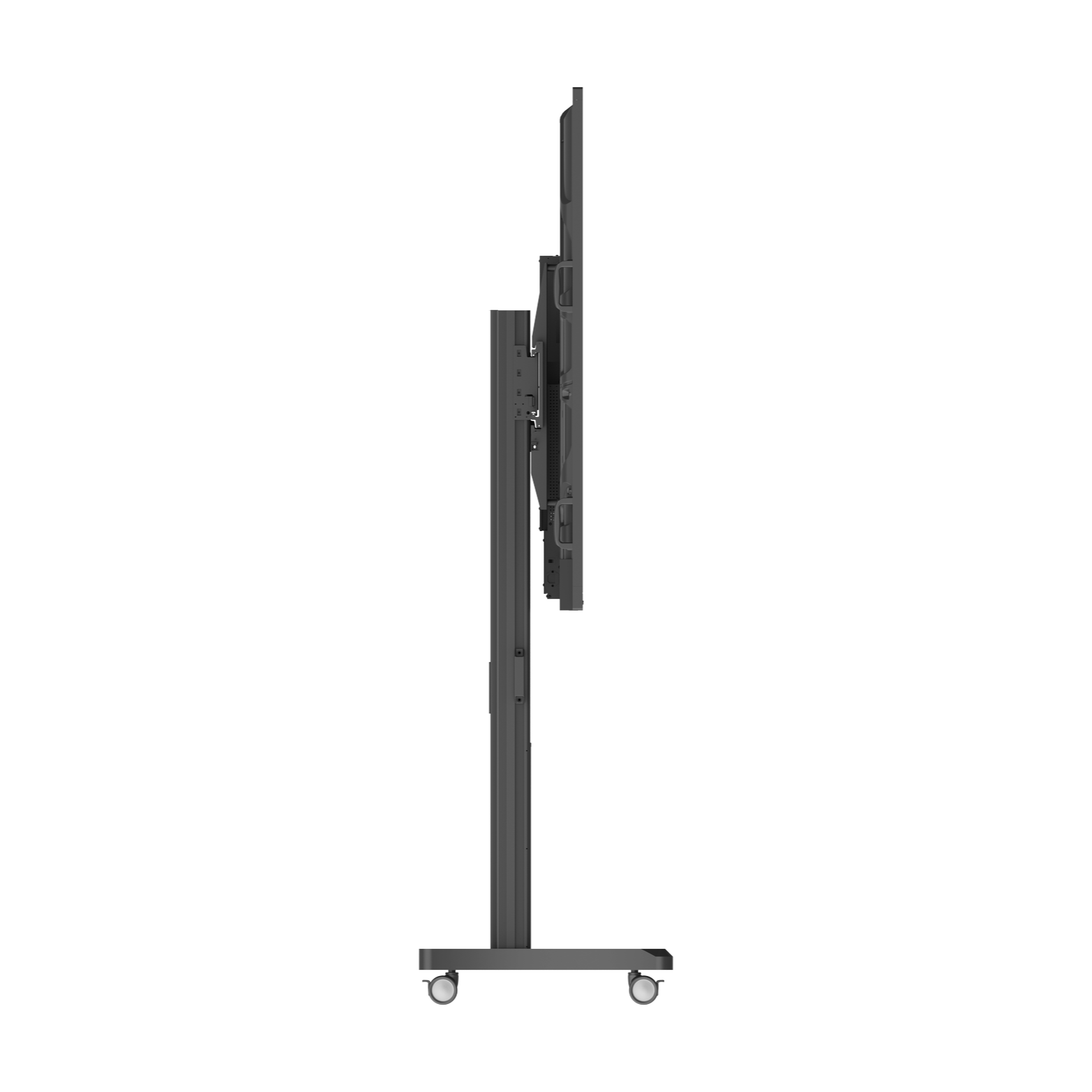

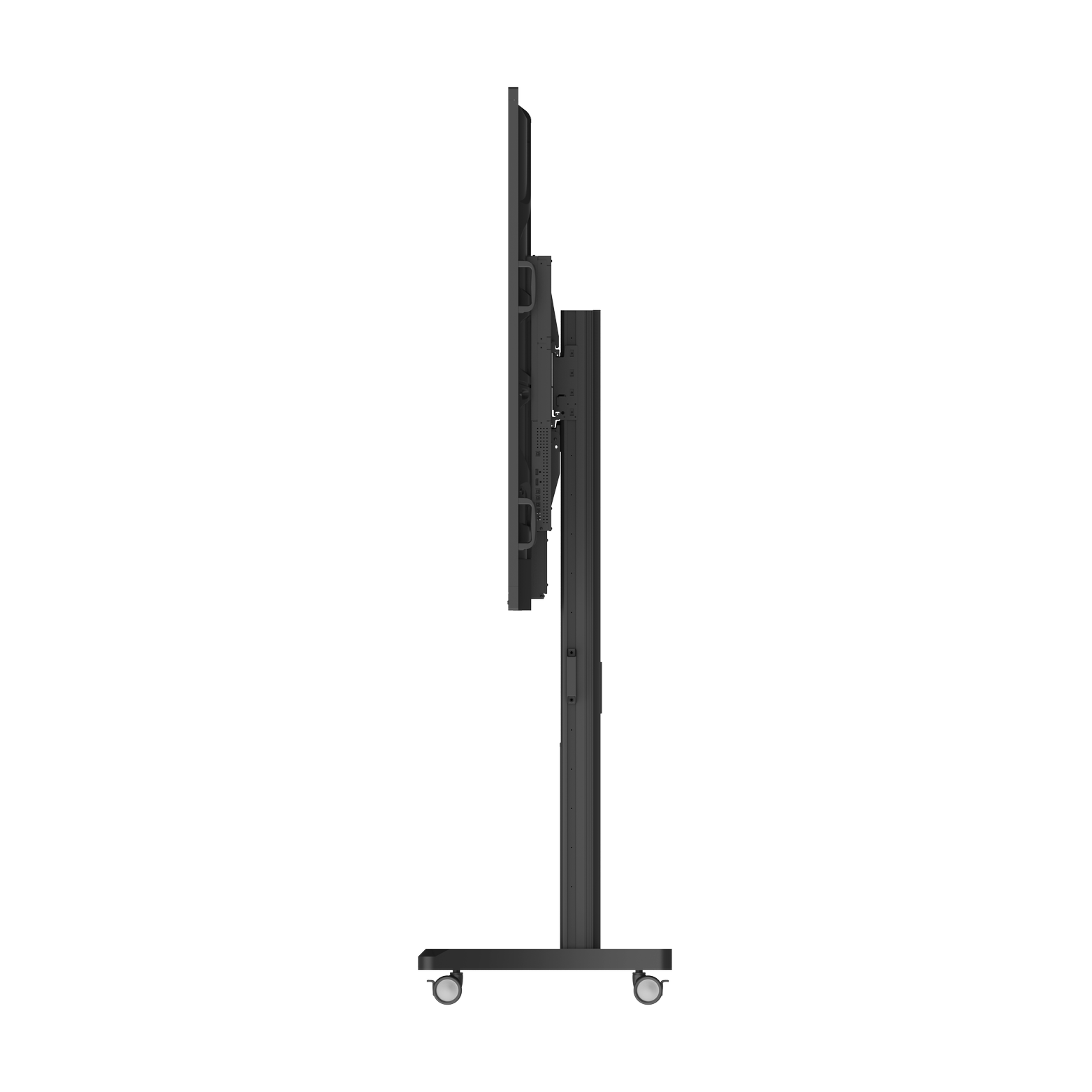

The monitor's on-screen menu includes built-in electric stand controls. When paired with a Jusha electric stand, users can easily adjust the display height using either the monitor's buttons or the remote control for improved ergonomics.
The monitor features a built-in KVM switch, allowing users to control multiple connected computers with a single keyboard, mouse, and touchscreen. Users can switch quickly between systems, reducing desktop clutter and improving workflow efficiency during MDT collaboration.
Built-in KVM Switch
Two integrated speakers support audio playback from digital inputs such as HDMI and DisplayPort, providing a convenient all-in-one audio-visual solution without the need for external speakers.The monitor intelligently detects color and grayscale regions within the displayed image and automatically applies the appropriate calibration curve to each area, optimizing both color accuracy and grayscale performance.
