Class 5 Steam Chemial Integrator

Standard:

ISO11140-1:2014

26mm x 60mm (2.4 inch x1.02 inch)

Model:

Type

9060

Size:

5

121℃-16.5min / 128℃-8.1min / 135℃-4.4min

Stated Value:

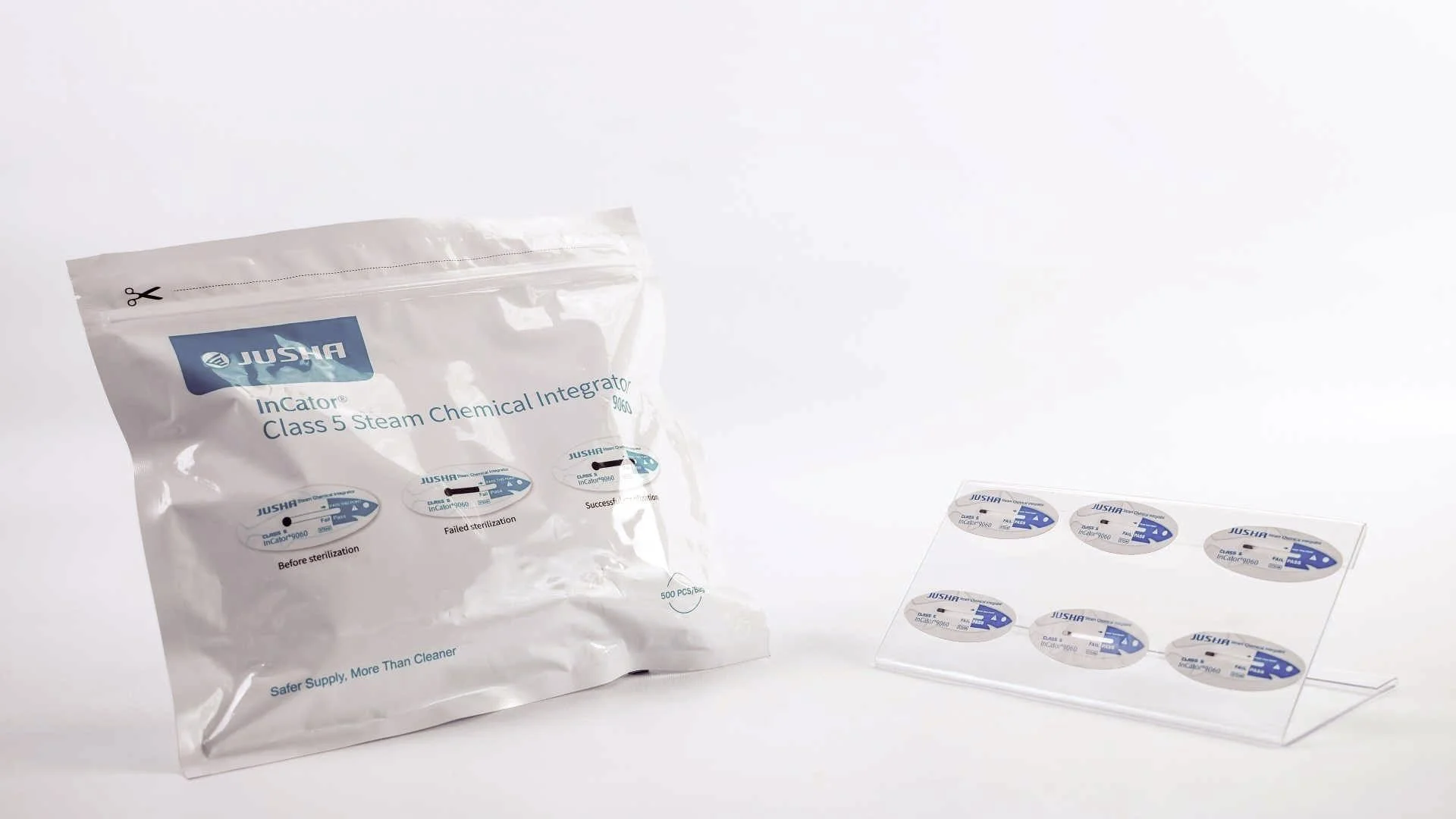

500 pcs/bag, 5 bags/box

Shelf Life:

Packaging

3 years

1.Accurate monitoring of three elements

Real-time verification of temperature (121°C/135°C), time (≥16.5min) and steam saturation to ensure 100% compliance with EN ISO 11140.

2.Unique mobile front-end ink technology

VTF tablet visualization technology to eliminate dye deficiency and increase reading accuracy by 30%.

Highly biocompatible materials, lead-free and environmentally friendly formula, reducing the risk of biological contamination.

3.All-scenario applicability

Supports a wide range of sterilization package monitoring (wrap-around packages, rigid containers, non-woven fabrics, etc.), flexible adaptation:

  • Wrap-around packages: placed at the geometric center (not at the top)

  • Rigid containers: 2 placed diagonally on each layer

  • Strip bags: internal placement of Class 5 Steam Chemical Integrator

Features:

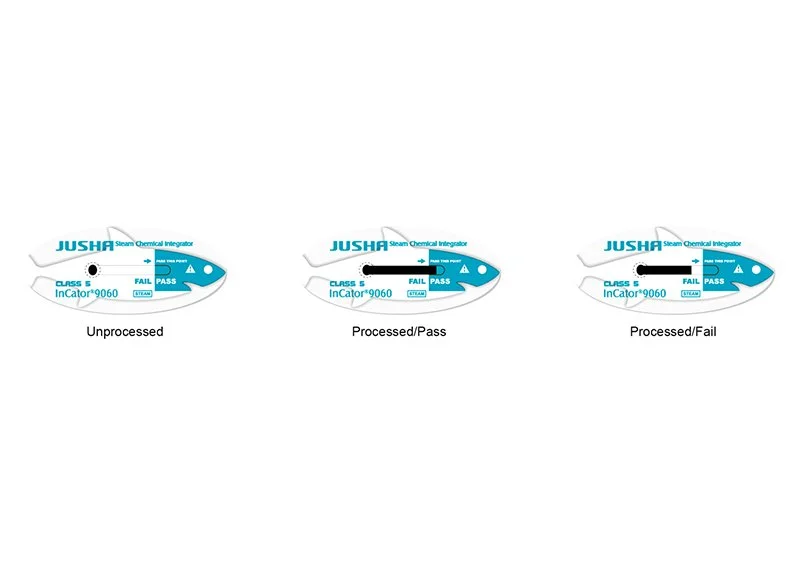

How to read

Unprocessed:

Accept:

Reject:


Download

Product Brochure
Instruction For Use
