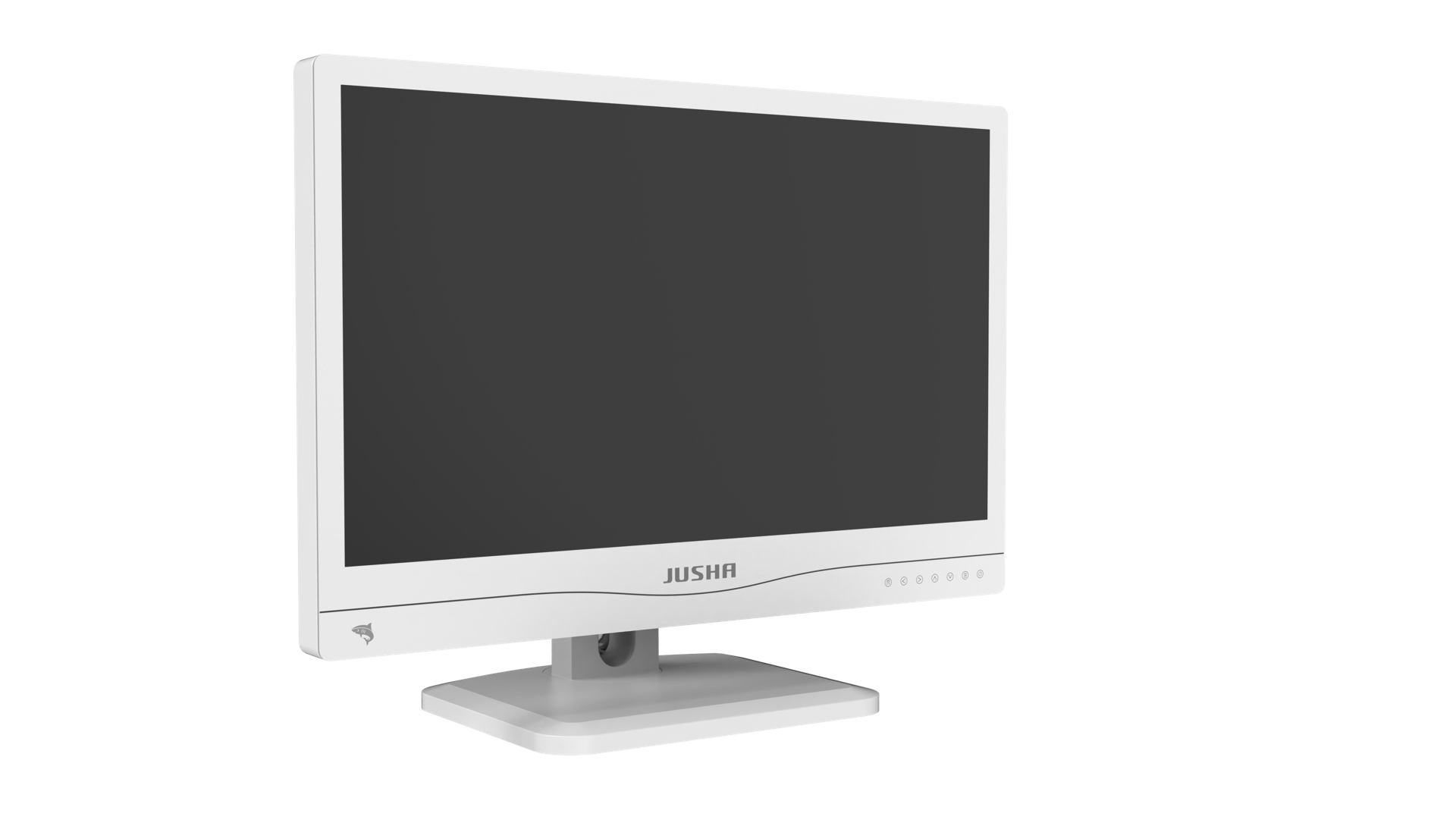

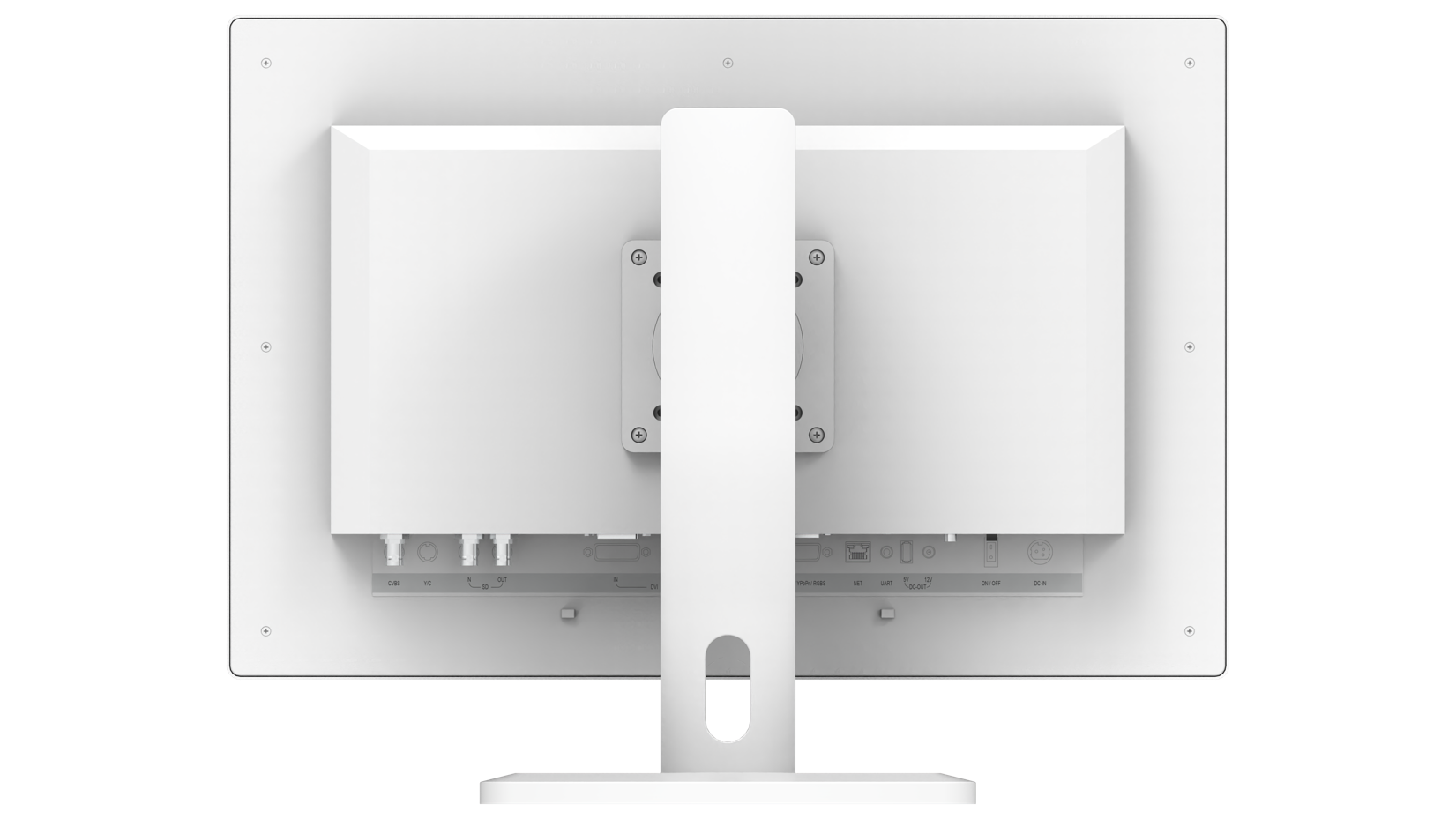

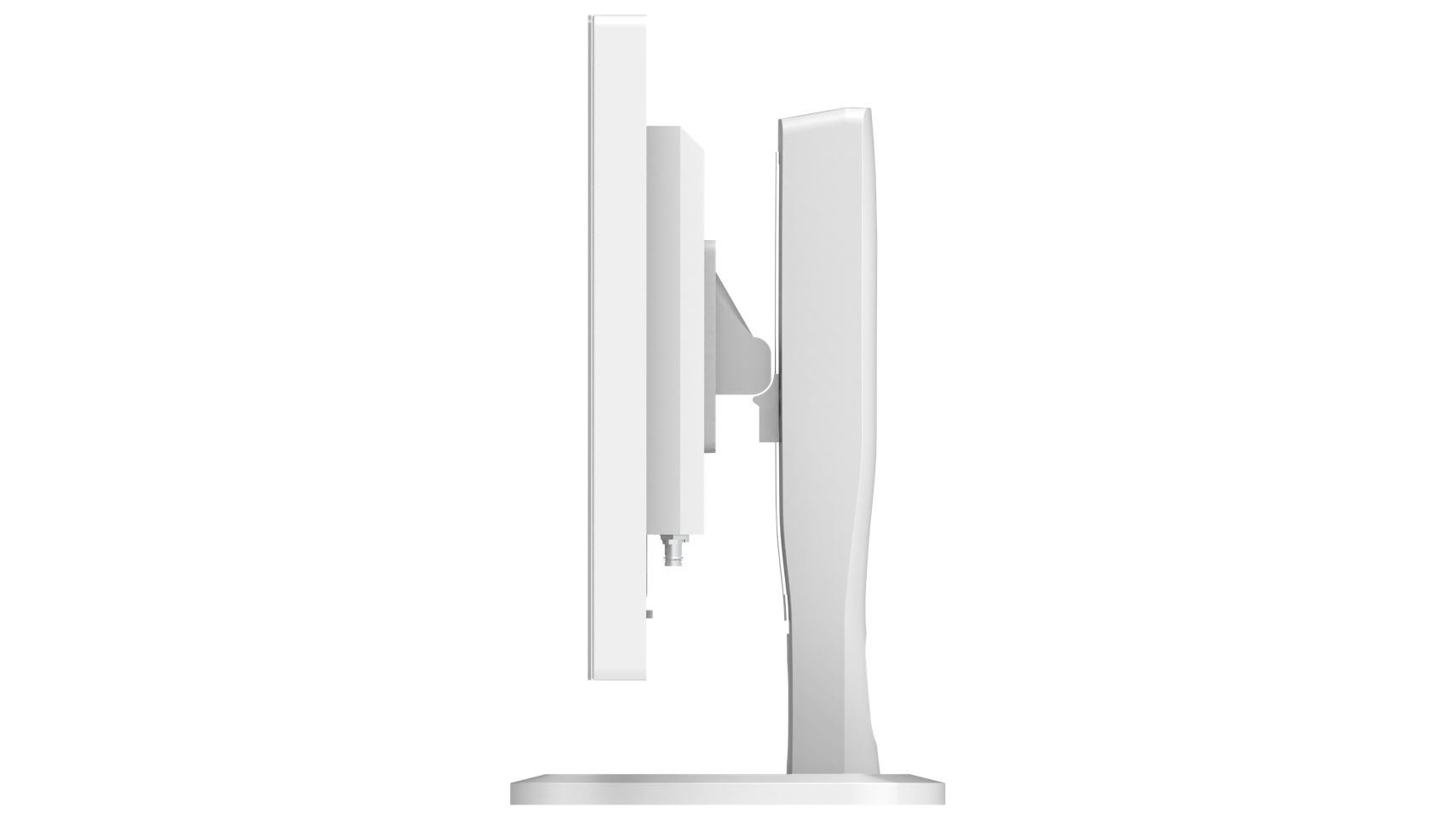

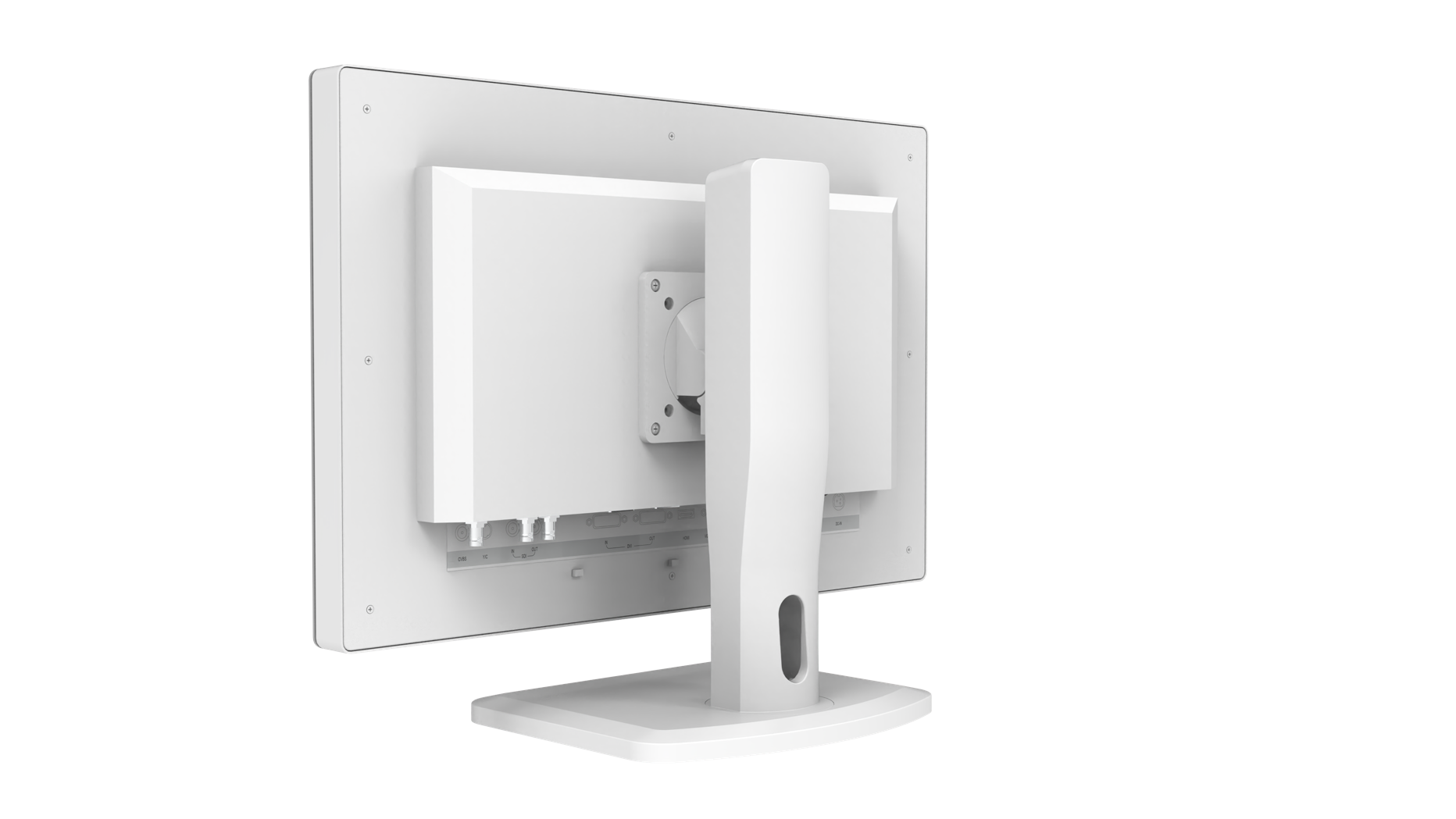

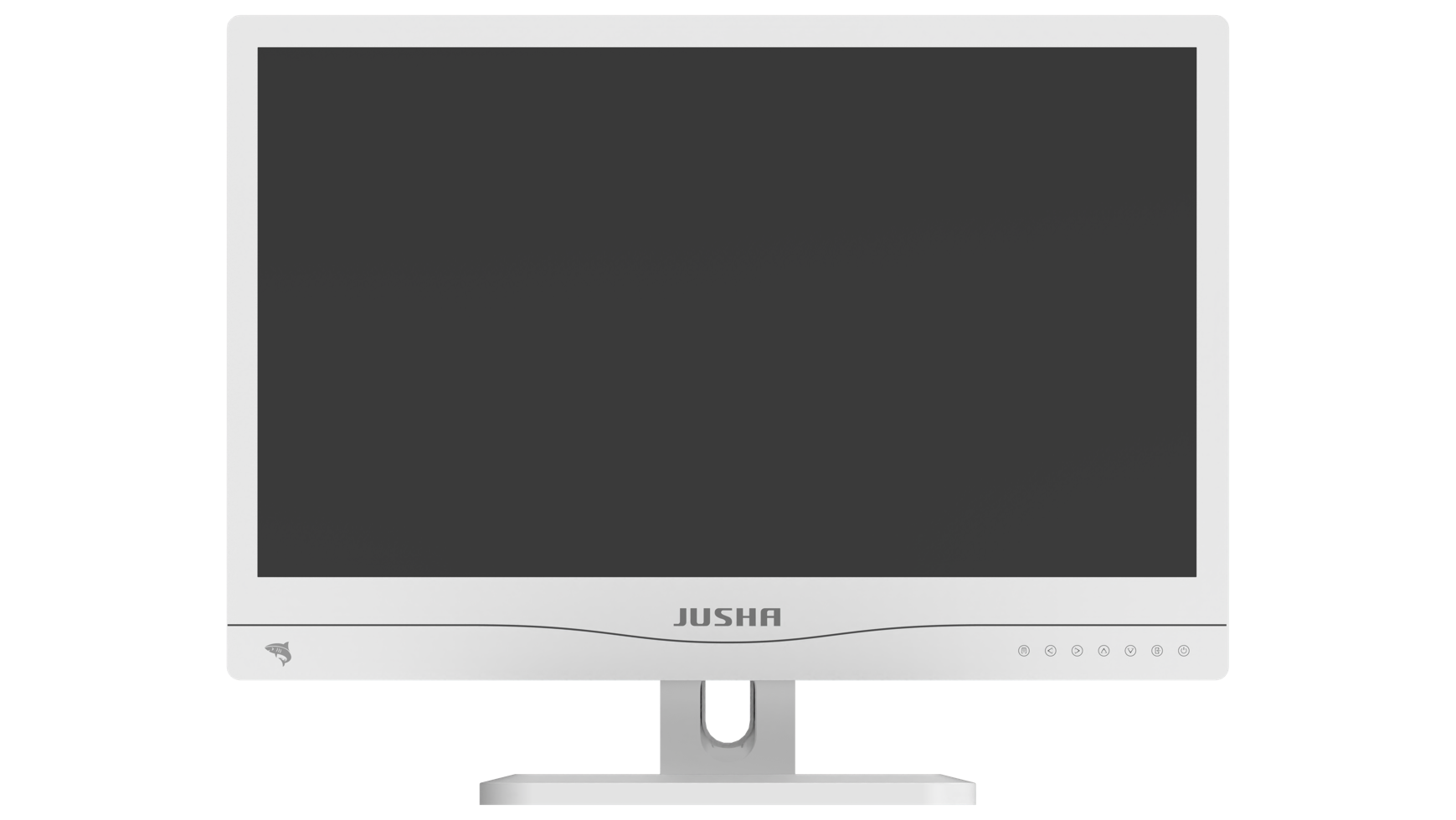

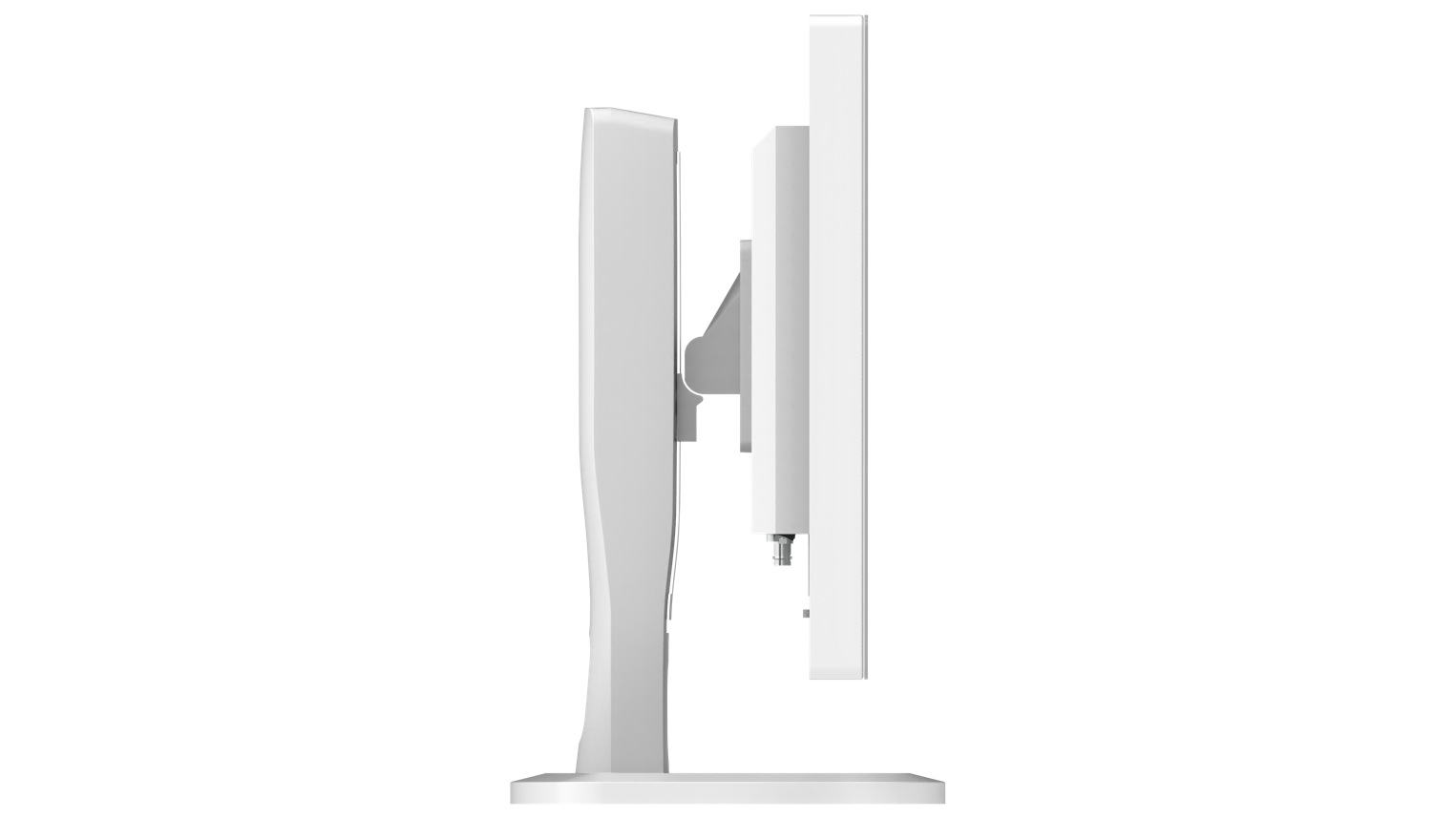

E240A1G - 24 inch FHD Surgical Monitor
You can find more videos on our official Youtube company page
A special monitor for endoscopic surgery adopts high-resolution FHD LCD panel, with accurate color reproduction, good color depth, smooth dynamic range, and wider viewing angle. This meets today's rapidly changing medical display needs, enabling a clear and precise visualization of the surgical images. Waterproof design, antibacterial treatment, good compliance with electromagnetic compatibility regulations, a variety of video input and output interfaces. HDMI port enables contemporary equipment connection. All of these make this product fully meeting the requirements of various applications in operating rooms.
Accurate color reproduction
This Jusha surgical monitor product line applies 12-bit LUT tochnology, which can accurately restore the color of human, so that surgeons can make more accurate judgments.
Smooth dynamic motion
The response time of this Jusha surgical monitor is less than 14ms, so that it can smoothly present high-resolution surgical videos, and clearly display the bleeding status and other delicate operations during the operation, without smear and fitter.
Various interfaces
This Jusha surgical monitor can be compatible with a variety of analog signals and digital signals and can be fully compatible with the world's major camera systems.
High color depth
This Jusha surgical monitor adopts the highest-level medical liquid crystal panel, which has good color, high brightness, and high contrast, so that the layers of each tissue in the operation are well expressed and the clinical image is clear and vivid.
Safe and Clean
This Jusha surgical monitor adopts a dust-free design, which meets the purification requirements of the operating room for surgical equipment. The metal enclosed design can effectively prevent dust and liquid pollution during the operation. The body of the metal shell and the built-in shielding circuit caneffectively prevent the interference of electronic surgical equipment such as high frequency electrosurgery on the monitor and ensure the stability of the surgicaldisplay.
| Model | E240A1G |
|---|---|
| Panel Type | IPS |
| Backlight | LED |
| Screen Size（Diagonal） | 23.8"（604.7 mm） |
| Resolution | 1920×1080 |
| Aspect Ratio | 16:9 |
| Pixel Pitch(H × V) | 0.2745 × 0.2745 mm |
| Color Depth | 8 bit |
| LUT Depth | 12 bit |
| Viewing Angle | 178° |
| Maximum brightness (Typical) | 400 cd/m² |
| Maximum brightness (Calibrated) | 320 cd/m² |
| GAMMA |
GAMMA1.8 GAMMA2.0 GAMMA2.2 GAMMA2.4 GAMMA2.6 DICOM |
| Contrast Ratio | 1000:1 |
| Response Time | 14 ms((Ton+Toff)/2) |
| Video Input |
Single-link DVI × 1 HDMI 1.4 × 1 VGA(YPbPr、RGBS) × 1 3G-SDI × 1(Optional A) S-VIDEO × 1(Optional B) CVBS × 1(Optional B) *Option A and B conflicted |
| Video Output |
Single-link DVI × 1 3G-SDI × 1(Optional A) |
| Other Port |
USB Type-A (DC 5V 2A Output) × 1 DC005 (DC 12V 2.5A Output) × 1 RJ45 ×1(Optional C) |
| Backup Channel | Yes |
| Power Input | DC: 24V, 3.75A |
| Power Consumption(Max) | 90 W |
| Sensor | Backlight Sensor, Temperature Sensor |
| Cover Glass | YES(AR, Optical Bonding) |
| IP Rating | IP65 (Front)，IP20 (Back) |
| Dimensions Without Stand(W × H × D) | 565.3 × 374.4 × 65.5mm |
| Net Weight Without Stand | 8.5 kg |
| Mounting Standard | VESA (100 × 100 mm) |
| Screw Requirement | M4 × 14 mm |
