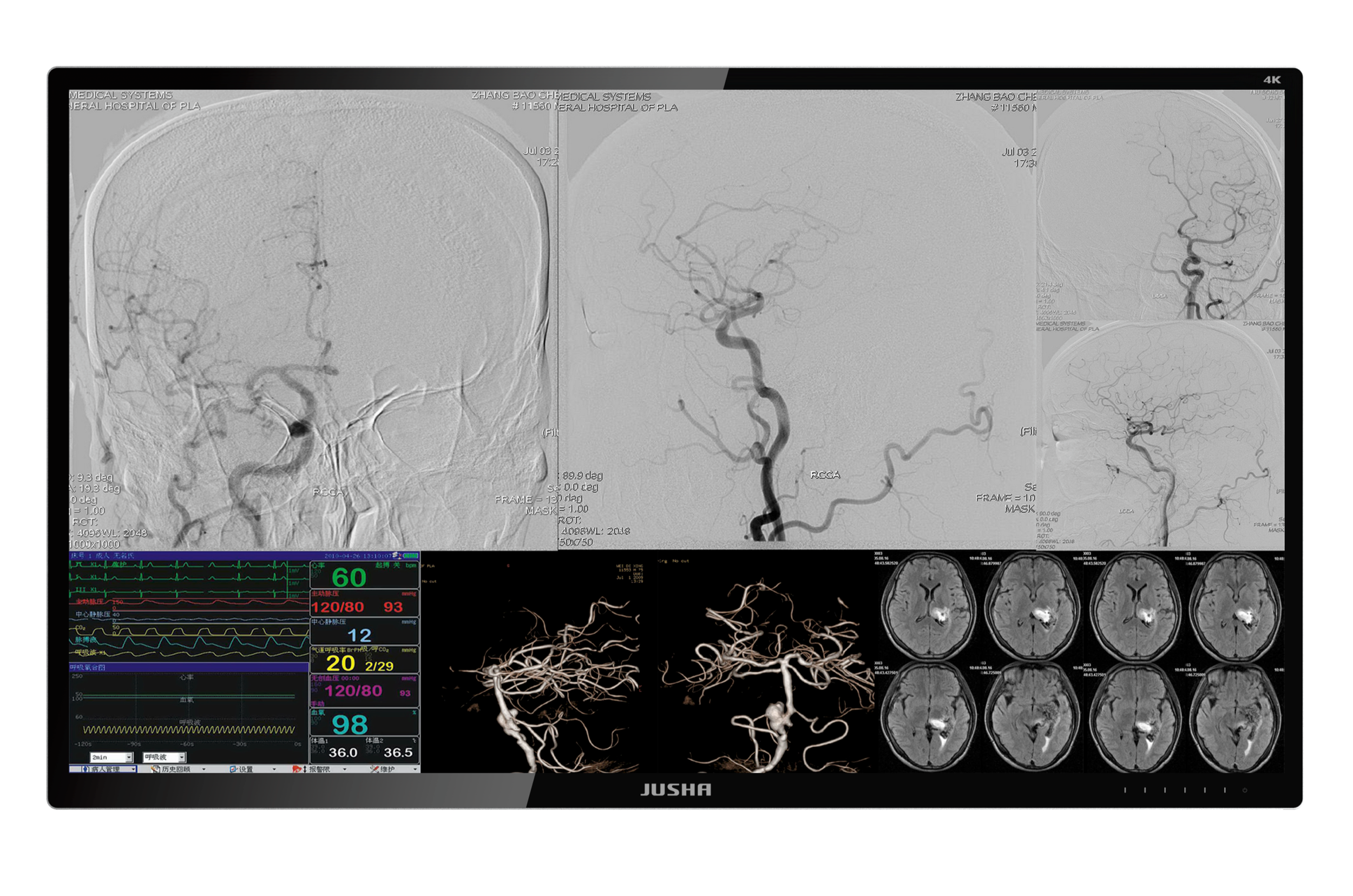

E550DG - 55 inch 4K Surgical Monitor for DSA
You can find more videos on our official Youtube company page
A special monitor tor endoscopic surgery adopts 4K ultra-high-resolution LCD panel, with accurate color reproduction, good color depth, smooth dynamic range, and wider viewing angle. This meets today's rapidly changing medical display needs, enabling a clear and precise visualization of the surgical images. Waterproot design, antibacterial treatment, good compliance with electromagnetic compatibility regulations, a variety of video input and output interfaces. All of these make this product fully meeting the requirements of various applications in operating rooms.
Accurate color reproduction
This Jusha surgical monitor product line applies 12-bit LUT tochnology, which can accurately restore the color of human, so that surgeons can make more accurate judgments.
Smooth dynamic motion
The response time of this Jusha surgical monitor is less than 14ms, so that it can smoothly present high-resolution surgical videos, and clearly display the bleeding status and other delicate operations during the operation, without smear and fitter.
Various interfaces
This Jusha surgical monitor can be compatible with a variety of analog signals and digital signals and can be fully compatible with the world's major camera systems.
High Reliability
High reliability is vital for surgical monitors because surgeons depend on stable, accurate images during procedures. It helps prevent image interruption, color distortion, or signal failure, supporting confident decisions, safer workflows, and consistent performance in demanding operating-room environments.
High color depth
This Jusha surgical monitor adopts the highest-level medical liquid crystal panel, which has good color, high brightness, and high contrast, so that the layers of each tissue in the operation are well expressed and the clinical image is clear and vivid.
Safe and Clean
This Jusha surgical monitor adopts a dust-free design, which meets the purification requirements of the operating room for surgical equipment. The metal enclosed design can effectively prevent dust and liquid pollution during the operation. The body of the metal shell and the built-in shielding circuit caneffectively prevent the interference of electronic surgical equipment such as high frequency electrosurgery on the monitor and ensure the stability of the surgicaldisplay.
Optical Bonding Glass
Optical bonding glass removes the air gap between the cover glass and LCD panel, reducing reflections and improving clarity, contrast, and readability under bright light. It also strengthens the screen, improves resistance to dust, moisture, and impact, and helps deliver sharper, more reliable images for medical and surgical environments.
Multiwindow Combinations
Single:
Any one of the following input:
DVI、 HDMI1、 HDMI2、 DP、 SDI1、 SDI2、 SDI3、 SDI4
4×3G-SDI Mode:
SDI1 + SDI2 + SDI3 + SDI4
2 Windows（PBP1、PBP2、PIP）：
3 Windows:
4 Windows:
Multiwindow Presets
Single
PBP1
PBP2
3 windows
4 windows
PIP (Small)
PIP (Medium)
PIP (Large)
PIP (X-Large)
| Model | E550DG |
|---|---|
| Panel Type | IPS |
| Backlight | LED |
| Screen Size（Diagonal） | 54.64" (1387.8 mm) |
| Resolution | 3840 × 2160 |
| Aspect Ratio | 16:9 |
| Pixel Pitch(H × V) | 0.315 × 0.315 mm |
| Color Depth | 10 bit |
| LUT Depth | 12 bit |
| Viewing Angle | 178° |
| Maximum brightness (Typical) | 800 cd/m² |
| Maximum brightness (Calibrated) | 450 cd/m² |
| GAMMA |
GAMMA1.8 GAMMA2.0 GAMMA2.2 GAMMA2.4 GAMMA2.6 DICOM |
| Contrast Ratio | 1200:1 |
| Response Time | 8 ms((Ton+Toff)/2) |
| Video Input |
DVI × 1 DP1.2 × 1 HDMI2.0 × 1 HDMI1.4 × 1 3G-SDI × 3 12G-SDI × 1 |
| Video Output |
Single-link DVI × 1 3G-SDI × 3 12G-SDI × 1 |
| Other Port |
USB Type-B (Program Update) × 1 DC005 (DC 5V 1A Output) × 2 RJ45 × 1 |
| Backup Channel | Yes |
| Power Input | AC: 100-240V~50/60Hz |
| Power Consumption(Max) | 200 W |
| Cover Glass | YES(AR, AF) |
| IP Rating | IP65 (Front)，IP20 (Back) |
| Dimensions Without Stand(W × H × D) | 1261.4 × 745.7 × 79.6 mm |
| Net Weight Without Stand | 40 kg |

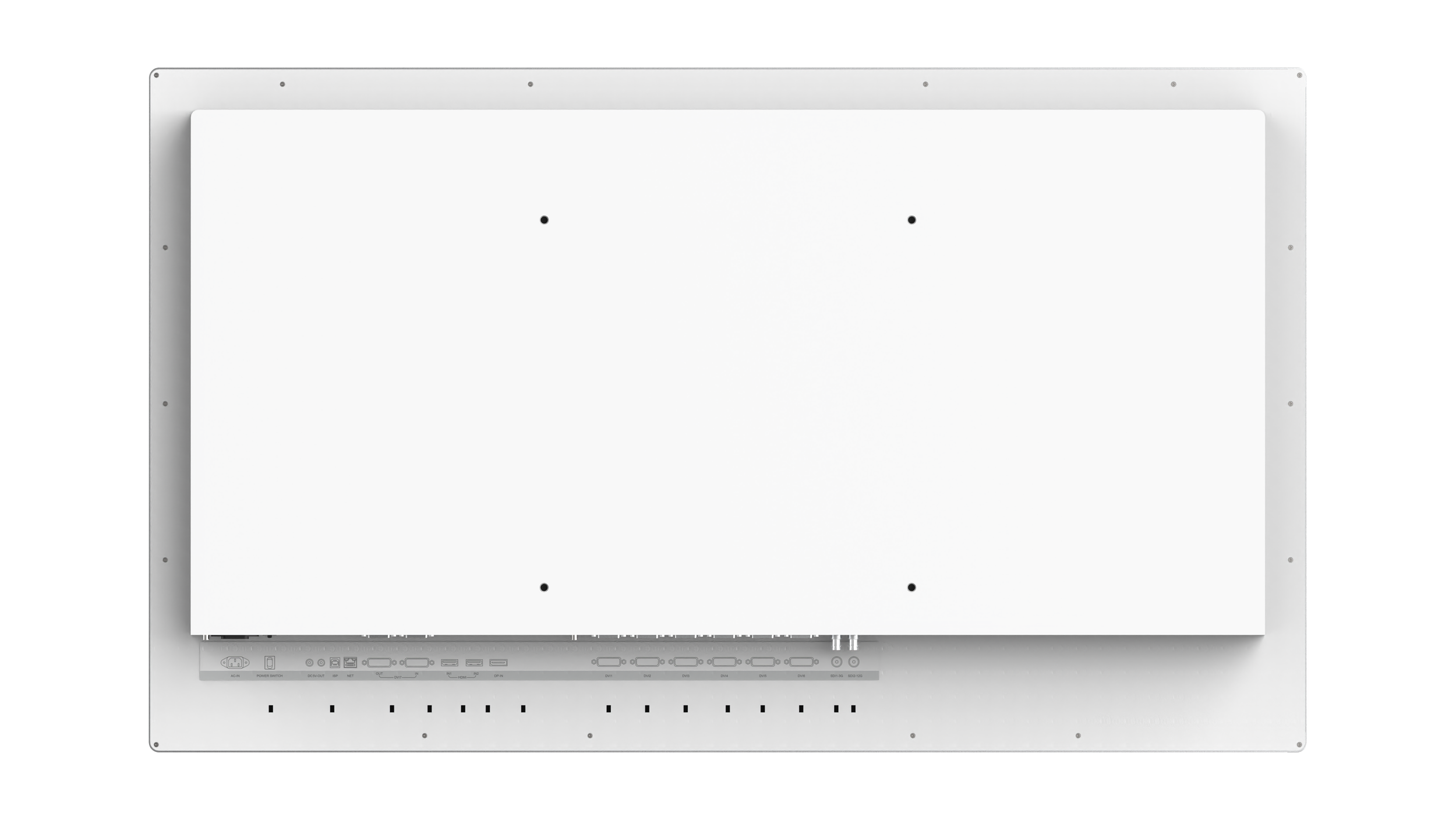

| Mounting Standard | VESA (200 × 200 mm, 600 × 200 mm) |
| Screw Requirement | M6 × 12 mm |
